Section 2.3 — Inventory of discrete distributions¶

This notebook contains all the code examples from Section 2.3 Inventory of discrete distributions of the No Bullshit Guide to Statistics.

Notebook setup¶

In [1]:

# load Python modules
import numpy as np
import pandas as pd
import seaborn as sns
import matplotlib.pyplot as plt

# load Python modules import numpy as np import pandas as pd import seaborn as sns import matplotlib.pyplot as plt

In [2]:

# Figures setup
sns.set_theme(
    context="paper",
    style="whitegrid",
    palette="colorblind",
    rc={'figure.figsize': (7,5)},
)

%config InlineBackend.figure_format = 'retina'

# Figures setup sns.set_theme( context="paper", style="whitegrid", palette="colorblind", rc={'figure.figsize': (7,5)}, ) %config InlineBackend.figure_format = 'retina'

In [3]:

# set random seed for repeatability
np.random.seed(42)

# set random seed for repeatability np.random.seed(42)

In [1]:

%pip install ministats

%pip install ministats

Requirement already satisfied: ministats in /Users/ivan/Projects/Minireference/software/ministats (0.2.0)
Requirement already satisfied: matplotlib>=3.8.3 in /Users/ivan/Projects/Minireference/STATSbook/noBSstatsnotebooks/venv/lib/python3.9/site-packages (from ministats) (3.8.3)
Requirement already satisfied: numpy>=1.26.4 in /Users/ivan/Projects/Minireference/STATSbook/noBSstatsnotebooks/venv/lib/python3.9/site-packages (from ministats) (1.26.4)
Requirement already satisfied: scipy>=1.12.0 in /Users/ivan/Projects/Minireference/STATSbook/noBSstatsnotebooks/venv/lib/python3.9/site-packages (from ministats) (1.12.0)
Requirement already satisfied: pandas>=2.2.1 in /Users/ivan/Projects/Minireference/STATSbook/noBSstatsnotebooks/venv/lib/python3.9/site-packages (from ministats) (2.2.1)
Requirement already satisfied: pillow>=10.2.0 in /Users/ivan/Projects/Minireference/STATSbook/noBSstatsnotebooks/venv/lib/python3.9/site-packages (from ministats) (10.2.0)
Requirement already satisfied: seaborn>=0.13.2 in /Users/ivan/Projects/Minireference/STATSbook/noBSstatsnotebooks/venv/lib/python3.9/site-packages (from ministats) (0.13.2)
Requirement already satisfied: statsmodels>=0.14.1 in /Users/ivan/Projects/Minireference/STATSbook/noBSstatsnotebooks/venv/lib/python3.9/site-packages (from ministats) (0.14.1)
Requirement already satisfied: kiwisolver>=1.3.1 in /Users/ivan/Projects/Minireference/STATSbook/noBSstatsnotebooks/venv/lib/python3.9/site-packages (from matplotlib>=3.8.3->ministats) (1.4.4)
Requirement already satisfied: cycler>=0.10 in /Users/ivan/Projects/Minireference/STATSbook/noBSstatsnotebooks/venv/lib/python3.9/site-packages (from matplotlib>=3.8.3->ministats) (0.11.0)
Requirement already satisfied: importlib-resources>=3.2.0 in /Users/ivan/Projects/Minireference/STATSbook/noBSstatsnotebooks/venv/lib/python3.9/site-packages (from matplotlib>=3.8.3->ministats) (5.12.0)
Requirement already satisfied: pyparsing>=2.3.1 in /Users/ivan/Projects/Minireference/STATSbook/noBSstatsnotebooks/venv/lib/python3.9/site-packages (from matplotlib>=3.8.3->ministats) (3.0.9)
Requirement already satisfied: fonttools>=4.22.0 in /Users/ivan/Projects/Minireference/STATSbook/noBSstatsnotebooks/venv/lib/python3.9/site-packages (from matplotlib>=3.8.3->ministats) (4.38.0)
Requirement already satisfied: contourpy>=1.0.1 in /Users/ivan/Projects/Minireference/STATSbook/noBSstatsnotebooks/venv/lib/python3.9/site-packages (from matplotlib>=3.8.3->ministats) (1.0.7)
Requirement already satisfied: python-dateutil>=2.7 in /Users/ivan/Projects/Minireference/STATSbook/noBSstatsnotebooks/venv/lib/python3.9/site-packages (from matplotlib>=3.8.3->ministats) (2.8.2)
Requirement already satisfied: packaging>=20.0 in /Users/ivan/Projects/Minireference/STATSbook/noBSstatsnotebooks/venv/lib/python3.9/site-packages (from matplotlib>=3.8.3->ministats) (23.0)
Requirement already satisfied: pytz>=2020.1 in /Users/ivan/Projects/Minireference/STATSbook/noBSstatsnotebooks/venv/lib/python3.9/site-packages (from pandas>=2.2.1->ministats) (2022.7.1)
Requirement already satisfied: tzdata>=2022.7 in /Users/ivan/Projects/Minireference/STATSbook/noBSstatsnotebooks/venv/lib/python3.9/site-packages (from pandas>=2.2.1->ministats) (2024.1)
Requirement already satisfied: patsy>=0.5.4 in /Users/ivan/Projects/Minireference/STATSbook/noBSstatsnotebooks/venv/lib/python3.9/site-packages (from statsmodels>=0.14.1->ministats) (0.5.6)
Requirement already satisfied: zipp>=3.1.0 in /Users/ivan/Projects/Minireference/STATSbook/noBSstatsnotebooks/venv/lib/python3.9/site-packages (from importlib-resources>=3.2.0->matplotlib>=3.8.3->ministats) (3.13.0)
Requirement already satisfied: six in /Users/ivan/Projects/Minireference/STATSbook/noBSstatsnotebooks/venv/lib/python3.9/site-packages (from patsy>=0.5.4->statsmodels>=0.14.1->ministats) (1.16.0)

[notice] A new release of pip is available: 23.0 -> 24.0
[notice] To update, run: pip3.9 install --upgrade pip
Note: you may need to restart the kernel to use updated packages.

In [2]:

from ministats import plot_pmf
from ministats import plot_cdf

from ministats import plot_pmf from ministats import plot_cdf

In [ ]:

Definitions¶

Math prerequisites¶

Combinatorics¶

See SciPy docs:

• https://docs.scipy.org/doc/scipy/reference/generated/scipy.special.factorial.html
• https://docs.scipy.org/doc/scipy/reference/generated/scipy.special.perm.html
• https://docs.scipy.org/doc/scipy/reference/generated/scipy.special.comb.html

Factorial¶

In [5]:

from scipy.special import factorial
# ALT.
# from math import factorial

from scipy.special import factorial # ALT. # from math import factorial

In [6]:

factorial(4)

factorial(4)

Out[6]:

24.0

In [7]:

factorial(1), factorial(2), factorial(3)

factorial(1), factorial(2), factorial(3)

Out[7]:

(1.0, 2.0, 6.0)

In [8]:

[factorial(k) for k in [5,6,7,8,9,10,11,12]]

[factorial(k) for k in [5,6,7,8,9,10,11,12]]

Out[8]:

[120.0, 720.0, 5040.0, 40320.0, 362880.0, 3628800.0, 39916800.0, 479001600.0]

In [9]:

factorial(15)

factorial(15)

Out[9]:

1307674368000.0

In [10]:

import numpy as np
np.log(factorial(15))/np.log(10)

import numpy as np np.log(factorial(15))/np.log(10)

Out[10]:

12.116499611123398

Permutations¶

In [11]:

from scipy.special import perm

perm(5,2)

from scipy.special import perm perm(5,2)

Out[11]:

20.0

In [12]:

perm(5,1), perm(5,2), perm(5,3), perm(5,4), perm(5,5)

perm(5,1), perm(5,2), perm(5,3), perm(5,4), perm(5,5)

Out[12]:

(5.0, 20.0, 60.0, 120.0, 120.0)

If you want to actually see, all the possible permutations we use the permutations function from itertools

In [13]:

from itertools import permutations
n = 5
nitems = range(1,n+1)
k = 2
list(permutations(nitems, k))

from itertools import permutations n = 5 nitems = range(1,n+1) k = 2 list(permutations(nitems, k))

Out[13]:

[(1, 2),
 (1, 3),
 (1, 4),
 (1, 5),
 (2, 1),
 (2, 3),
 (2, 4),
 (2, 5),
 (3, 1),
 (3, 2),
 (3, 4),
 (3, 5),
 (4, 1),
 (4, 2),
 (4, 3),
 (4, 5),
 (5, 1),
 (5, 2),
 (5, 3),
 (5, 4)]

In [ ]:

Combinations¶

In [14]:

from scipy.special import comb


comb(5,2)

from scipy.special import comb comb(5,2)

Out[14]:

10.0

In [15]:

from itertools import combinations

n = 5
k = 2
list(combinations(range(1,n+1), k))

from itertools import combinations n = 5 k = 2 list(combinations(range(1,n+1), k))

Out[15]:

[(1, 2),
 (1, 3),
 (1, 4),
 (1, 5),
 (2, 3),
 (2, 4),
 (2, 5),
 (3, 4),
 (3, 5),
 (4, 5)]

In [ ]:

In [ ]:

In [ ]:

Summations using basic Python¶

In [16]:

N = 10
nums = range(1,N+1)
list(nums)

N = 10 nums = range(1,N+1) list(nums)

Out[16]:

[1, 2, 3, 4, 5, 6, 7, 8, 9, 10]

In [17]:

sum(nums)

sum(nums)

Out[17]:

55

In [18]:

N*(N+1)/2  # formula

N*(N+1)/2 # formula

Out[18]:

55.0

In [19]:

squarednums = [num**2 for num in nums]
squarednums

squarednums = [num**2 for num in nums] squarednums

Out[19]:

[1, 4, 9, 16, 25, 36, 49, 64, 81, 100]

In [20]:

sum(squarednums)

sum(squarednums)

Out[20]:

385

In [21]:

N*(N+1)*(2*N+1)/6  # formula

N*(N+1)*(2*N+1)/6 # formula

Out[21]:

385.0

In [ ]:

In [22]:

cubednums = [num**3 for num in nums]
cubednums

cubednums = [num**3 for num in nums] cubednums

Out[22]:

[1, 8, 27, 64, 125, 216, 343, 512, 729, 1000]

In [23]:

sum(cubednums)

sum(cubednums)

Out[23]:

3025

In [24]:

( N*(N+1)/2 )**2  # formula

( N*(N+1)/2 )**2 # formula

Out[24]:

3025.0

In [ ]:

Sum of the geometric series¶

In [25]:

a = 0.5
r = 0.5

sum([a*r**k for k in range(0,60)])

a = 0.5 r = 0.5 sum([a*r**k for k in range(0,60)])

Out[25]:

1.0

In [ ]:

Summations using SymPy (bonus material)¶

In [26]:

from sympy import symbols
from sympy import summation
from sympy import simplify

k, N, r = symbols("k N r")

from sympy import symbols from sympy import summation from sympy import simplify k, N, r = symbols("k N r")

In [ ]:

Sum of arithmetic sequence¶

In [27]:

a_k = k

summation(a_k, (k,0, N))

a_k = k summation(a_k, (k,0, N))

Out[27]:

$\displaystyle \frac{N^{2}}{2} + \frac{N}{2}$

In [28]:

simplify(summation(a_k, (k,0, N)))

simplify(summation(a_k, (k,0, N)))

Out[28]:

$\displaystyle \frac{N \left(N + 1\right)}{2}$

In [ ]:

Sum of squares¶

In [29]:

b_k = k**2

simplify(summation(b_k, (k,0, N)))

b_k = k**2 simplify(summation(b_k, (k,0, N)))

Out[29]:

$\displaystyle \frac{N \left(2 N^{2} + 3 N + 1\right)}{6}$

In [ ]:

Sum of cubes¶

In [30]:

c_k = k**3

simplify(summation(c_k, (k,0, N)))

c_k = k**3 simplify(summation(c_k, (k,0, N)))

Out[30]:

$\displaystyle \frac{N^{2} \left(N^{2} + 2 N + 1\right)}{4}$

In [ ]:

Geometric series¶

In [31]:

g_k = r**k

summation(g_k, (k,0, N))

g_k = r**k summation(g_k, (k,0, N))

Out[31]:

$\displaystyle \begin{cases} N + 1 & \text{for}\: r = 1 \\\frac{1 - r^{N + 1}}{1 - r} & \text{otherwise} \end{cases}$

In [32]:

# from sympy import limit, oo
# limit( (1-r**(N+1))/(1-r), N, oo)
# # doesn't work; need to specify assumption r < 1

# from sympy import limit, oo # limit( (1-r**(N+1))/(1-r), N, oo) # # doesn't work; need to specify assumption r < 1

In [ ]:

In [ ]:

In [ ]:

In [ ]:

In [ ]:

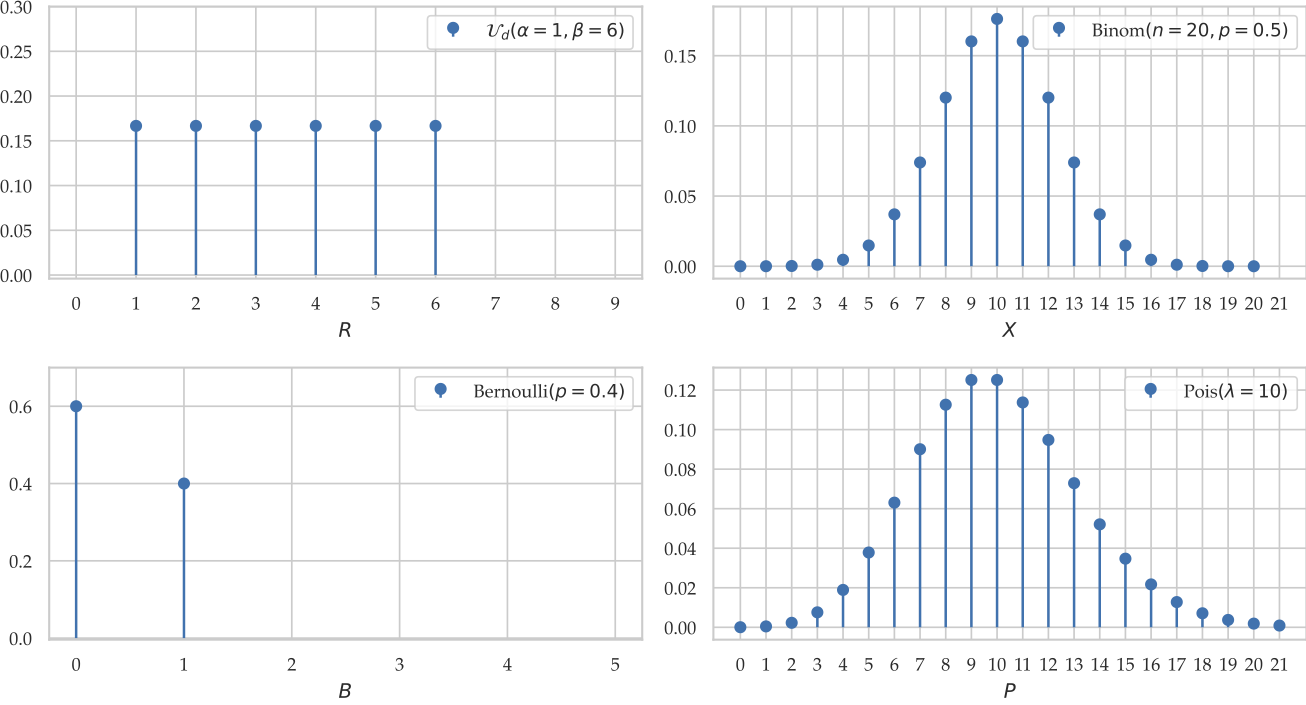

Discrete distributions reference¶

Discrete uniform¶

In [33]:

# import the model family
from scipy.stats import randint

# choose parameters
alpha = 1  # start at
beta = 4   # stop at

# create the rv object
rvU = randint(alpha, beta+1)

# use one of the rv object's methods

# import the model family from scipy.stats import randint # choose parameters alpha = 1 # start at beta = 4 # stop at # create the rv object rvU = randint(alpha, beta+1) # use one of the rv object's methods

The limits of the sample space of the random variable rvU can be obtained by calling its .support() method.

In [34]:

rvU.support()

rvU.support()

Out[34]:

(1, 4)

In [35]:

rvU.mean()

rvU.mean()

Out[35]:

2.5

In [36]:

rvU.var()

rvU.var()

Out[36]:

1.25

In [37]:

rvU.std()  # = np.sqrt(rvU.var())

rvU.std() # = np.sqrt(rvU.var())

Out[37]:

1.118033988749895

In [ ]:

Probability mass function¶

In [38]:

for x in range(1,4+1):
    print("f_U(",x,")  = ", rvU.pmf(x))

for x in range(1,4+1): print("f_U(",x,") = ", rvU.pmf(x))

f_U( 1 )  =  0.25
f_U( 2 )  =  0.25
f_U( 3 )  =  0.25
f_U( 4 )  =  0.25

To create a stem-plot of the probability mass function $f_U$, we can use the following three-step procedure:

1. Create a range of inputs xs for the plot.
2. Compute the value of $f_U =$ rvU for each of the inputs and store the results as list of values fUs.
3. Plot the values fUs by calling the function plt.stem(xs,fUs).

In [39]:

import numpy as np
import matplotlib.pyplot as plt

xs = np.arange(0,8+1)
fUs = rvU.pmf(xs)
plt.stem(xs, fUs, basefmt=" ")

import numpy as np import matplotlib.pyplot as plt xs = np.arange(0,8+1) fUs = rvU.pmf(xs) plt.stem(xs, fUs, basefmt=" ")

Out[39]:

<StemContainer object of 3 artists>

In [40]:

# ALT
plot_pmf(rvU, xlims=[0,8+1])

# ALT plot_pmf(rvU, xlims=[0,8+1])

Out[40]:

<AxesSubplot:xlabel='x', ylabel='$f_{X}$'>

In [ ]:

Cumulative distribution function¶

In [41]:

for b in range(1,4+1):
    print("F_U(", b, ")  = ", rvU.cdf(b))

for b in range(1,4+1): print("F_U(", b, ") = ", rvU.cdf(b))

F_U( 1 )  =  0.25
F_U( 2 )  =  0.5
F_U( 3 )  =  0.75
F_U( 4 )  =  1.0

In [42]:

import numpy as np
import seaborn as sns

xs = np.linspace(0,8,1000)
FUs = rvU.cdf(xs)
sns.lineplot(x=xs, y=FUs)

import numpy as np import seaborn as sns xs = np.linspace(0,8,1000) FUs = rvU.cdf(xs) sns.lineplot(x=xs, y=FUs)

Out[42]:

<AxesSubplot:>

In [43]:

# ALT
plot_cdf(rvU, xlims=[0,8], rv_name="U")

# ALT plot_cdf(rvU, xlims=[0,8], rv_name="U")

Out[43]:

<AxesSubplot:xlabel='u', ylabel='$F_{U}$'>

Let's generate 10 random observations from random variable rvU:

In [44]:

rvU.rvs(10)

rvU.rvs(10)

Out[44]:

array([3, 4, 1, 3, 3, 4, 1, 1, 3, 2])

In [ ]:

In [ ]:

Bernoulli¶

In [45]:

from scipy.stats import bernoulli

rvB = bernoulli(p=0.3)

from scipy.stats import bernoulli rvB = bernoulli(p=0.3)

In [46]:

rvB.support()

rvB.support()

Out[46]:

(0, 1)

In [47]:

rvB.mean(), rvB.var()

rvB.mean(), rvB.var()

Out[47]:

(0.3, 0.21)

In [48]:

rvB.rvs(10)

rvB.rvs(10)

Out[48]:

array([0, 0, 1, 0, 1, 0, 1, 1, 0, 0])

In [49]:

plot_pmf(rvB, xlims=[0,5]);

plot_pmf(rvB, xlims=[0,5]);

In [ ]:

In [ ]:

Poisson¶

In [50]:

from scipy.stats import poisson
lam = 10
rvP = poisson(lam)

from scipy.stats import poisson lam = 10 rvP = poisson(lam)

In [51]:

rvP.pmf(8)

rvP.pmf(8)

Out[51]:

0.11259903214902009

In [52]:

rvP.cdf(8)

rvP.cdf(8)

Out[52]:

0.3328196787507191

In [53]:

## ALT. way to compute the value F_P(8) =
# sum([rvP.pmf(x) for x in range(0,8+1)])

## ALT. way to compute the value F_P(8) = # sum([rvP.pmf(x) for x in range(0,8+1)])

In [54]:

plot_pmf(rvP, xlims=[0,30]);

plot_pmf(rvP, xlims=[0,30]);

In [ ]:

In [ ]:

Binomial¶

We'll use the name rvX because rvB was already used for the Bernoulli random variable above.

In [55]:

from scipy.stats import binom

n = 20
p = 0.14
rvX = binom(n,p)

from scipy.stats import binom n = 20 p = 0.14 rvX = binom(n,p)

In [56]:

rvX.support()

rvX.support()

Out[56]:

(0, 20)

In [57]:

rvX.mean(), rvX.var()

rvX.mean(), rvX.var()

Out[57]:

(2.8000000000000003, 2.4080000000000004)

In [58]:

plot_pmf(rvX, xlims=[0,30]);

plot_pmf(rvX, xlims=[0,30]);

In [ ]:

In [ ]:

Geometric¶

In [59]:

from scipy.stats import geom

rvG = geom(p = 0.2)

from scipy.stats import geom rvG = geom(p = 0.2)

In [60]:

rvG.support()

rvG.support()

Out[60]:

(1, inf)

In [61]:

rvG.mean(), rvG.var()

rvG.mean(), rvG.var()

Out[61]:

(5.0, 20.0)

In [62]:

plot_pmf(rvG, xlims=[0,40]);

plot_pmf(rvG, xlims=[0,40]);

In [ ]:

In [ ]:

Negative binomial¶

In [63]:

from scipy.stats import nbinom

r = 10
p = 0.5
rvN = nbinom(r,p)

from scipy.stats import nbinom r = 10 p = 0.5 rvN = nbinom(r,p)

In [64]:

rvN.support()

rvN.support()

Out[64]:

(0, inf)

In [65]:

rvN.mean(), rvN.var()

rvN.mean(), rvN.var()

Out[65]:

(10.0, 20.0)

In [66]:

plot_pmf(rvN, xlims=[0,40]);

plot_pmf(rvN, xlims=[0,40]);

In [ ]:

In [ ]:

Hypergeometric¶

In [67]:

from scipy.stats import hypergeom

a = 30   # number of success balls
b = 40   # number of failure balls
n = 20   # how many we're drawing

rvH = hypergeom(a+b, a, n)

from scipy.stats import hypergeom a = 30 # number of success balls b = 40 # number of failure balls n = 20 # how many we're drawing rvH = hypergeom(a+b, a, n)

In [68]:

rvH.support()

rvH.support()

Out[68]:

(0, 20)

In [69]:

rvH.mean(), rvH.var()

rvH.mean(), rvH.var()

Out[69]:

(8.571428571428571, 3.54924578527063)

In [70]:

meanH, stdH = rvH.stats()
print("mean =", meanH, "  std =", stdH)

meanH, stdH = rvH.stats() print("mean =", meanH, " std =", stdH)

mean = 8.571428571428571   std = 3.54924578527063

In [71]:

plot_pmf(rvH, xlims=[0,30]);

plot_pmf(rvH, xlims=[0,30]);

In [ ]:

Tomatoes salad probabilities¶

In [72]:

a = 3   # number of good tomatoes
b = 4   # number of rotten tomatoes
n = 2   # how many we're drawing

rvHe = hypergeom(a+b, a, n)


plot_pmf(rvHe, xlims=[0,3])

rvHe.pmf(0), rvHe.pmf(1), rvHe.pmf(2)

a = 3 # number of good tomatoes b = 4 # number of rotten tomatoes n = 2 # how many we're drawing rvHe = hypergeom(a+b, a, n) plot_pmf(rvHe, xlims=[0,3]) rvHe.pmf(0), rvHe.pmf(1), rvHe.pmf(2)

Out[72]:

(0.28571428571428575, 0.5714285714285715, 0.14285714285714288)

Number of dogs seen by Amy¶

In [73]:

a = 7        # number dogs
b = 20 - 7   # number of other animals
n = 12       # how many "patients" Amy will see today

rvD = hypergeom(a+b, a, n)

a = 7 # number dogs b = 20 - 7 # number of other animals n = 12 # how many "patients" Amy will see today rvD = hypergeom(a+b, a, n)

In [74]:

# Pr of exactly five dogs
rvD.pmf(5)

# Pr of exactly five dogs rvD.pmf(5)

Out[74]:

0.2860681114551084

In [75]:

plot_pmf(rvD, xlims=[0,10]);

plot_pmf(rvD, xlims=[0,10]);

In [ ]:

Multinomial¶

See docs.

In [76]:

from scipy.stats import multinomial

n = 10
ps = [0.1, 0.5, 0.8]

rvM = multinomial(n,ps)

from scipy.stats import multinomial n = 10 ps = [0.1, 0.5, 0.8] rvM = multinomial(n,ps)

In [77]:

rvM.rvs()

rvM.rvs()

Out[77]:

array([[0, 6, 4]])

In [78]:

# TODO: 3D scatter plot of points in space

# TODO: 3D scatter plot of points in space

In [ ]:

Modelling real-world data using probability¶

TODO: add simple inference and plots

In [ ]:

Discussion¶

In [ ]:

In [ ]:
