Section 2.6 — Inventory of continuous distributions¶

This notebook contains all the code examples from Section 2.6 Inventory of continuous distributions of the No Bullshit Guide to Statistics.

Notebook setup¶

In [1]:

# load Python modules
import numpy as np
import pandas as pd
import seaborn as sns
import matplotlib.pyplot as plt

# load Python modules import numpy as np import pandas as pd import seaborn as sns import matplotlib.pyplot as plt

In [2]:

# Figures setup
sns.set_theme(
    context="paper",
    style="whitegrid",
    palette="colorblind",
    rc={'figure.figsize': (7,4)},
)

%config InlineBackend.figure_format = 'retina'

# Figures setup sns.set_theme( context="paper", style="whitegrid", palette="colorblind", rc={'figure.figsize': (7,4)}, ) %config InlineBackend.figure_format = 'retina'

In [3]:

# set random seed for repeatability
np.random.seed(42)

# set random seed for repeatability np.random.seed(42)

In [4]:

%pip install ministats

%pip install ministats

Requirement already satisfied: ministats in /Users/ivan/Projects/Minireference/software/ministats (0.2.0)
Requirement already satisfied: matplotlib>=3.8.3 in /Users/ivan/Projects/Minireference/STATSbook/noBSstatsnotebooks/venv/lib/python3.9/site-packages (from ministats) (3.8.3)
Requirement already satisfied: numpy>=1.26.4 in /Users/ivan/Projects/Minireference/STATSbook/noBSstatsnotebooks/venv/lib/python3.9/site-packages (from ministats) (1.26.4)
Requirement already satisfied: scipy>=1.12.0 in /Users/ivan/Projects/Minireference/STATSbook/noBSstatsnotebooks/venv/lib/python3.9/site-packages (from ministats) (1.12.0)
Requirement already satisfied: pandas>=2.2.1 in /Users/ivan/Projects/Minireference/STATSbook/noBSstatsnotebooks/venv/lib/python3.9/site-packages (from ministats) (2.2.1)
Requirement already satisfied: pillow>=10.2.0 in /Users/ivan/Projects/Minireference/STATSbook/noBSstatsnotebooks/venv/lib/python3.9/site-packages (from ministats) (10.2.0)
Requirement already satisfied: seaborn>=0.13.2 in /Users/ivan/Projects/Minireference/STATSbook/noBSstatsnotebooks/venv/lib/python3.9/site-packages (from ministats) (0.13.2)
Requirement already satisfied: statsmodels>=0.14.1 in /Users/ivan/Projects/Minireference/STATSbook/noBSstatsnotebooks/venv/lib/python3.9/site-packages (from ministats) (0.14.1)
Requirement already satisfied: python-dateutil>=2.7 in /Users/ivan/Projects/Minireference/STATSbook/noBSstatsnotebooks/venv/lib/python3.9/site-packages (from matplotlib>=3.8.3->ministats) (2.8.2)
Requirement already satisfied: importlib-resources>=3.2.0 in /Users/ivan/Projects/Minireference/STATSbook/noBSstatsnotebooks/venv/lib/python3.9/site-packages (from matplotlib>=3.8.3->ministats) (5.12.0)
Requirement already satisfied: cycler>=0.10 in /Users/ivan/Projects/Minireference/STATSbook/noBSstatsnotebooks/venv/lib/python3.9/site-packages (from matplotlib>=3.8.3->ministats) (0.11.0)
Requirement already satisfied: kiwisolver>=1.3.1 in /Users/ivan/Projects/Minireference/STATSbook/noBSstatsnotebooks/venv/lib/python3.9/site-packages (from matplotlib>=3.8.3->ministats) (1.4.4)
Requirement already satisfied: fonttools>=4.22.0 in /Users/ivan/Projects/Minireference/STATSbook/noBSstatsnotebooks/venv/lib/python3.9/site-packages (from matplotlib>=3.8.3->ministats) (4.38.0)
Requirement already satisfied: packaging>=20.0 in /Users/ivan/Projects/Minireference/STATSbook/noBSstatsnotebooks/venv/lib/python3.9/site-packages (from matplotlib>=3.8.3->ministats) (23.0)
Requirement already satisfied: contourpy>=1.0.1 in /Users/ivan/Projects/Minireference/STATSbook/noBSstatsnotebooks/venv/lib/python3.9/site-packages (from matplotlib>=3.8.3->ministats) (1.0.7)
Requirement already satisfied: pyparsing>=2.3.1 in /Users/ivan/Projects/Minireference/STATSbook/noBSstatsnotebooks/venv/lib/python3.9/site-packages (from matplotlib>=3.8.3->ministats) (3.0.9)
Requirement already satisfied: tzdata>=2022.7 in /Users/ivan/Projects/Minireference/STATSbook/noBSstatsnotebooks/venv/lib/python3.9/site-packages (from pandas>=2.2.1->ministats) (2024.1)
Requirement already satisfied: pytz>=2020.1 in /Users/ivan/Projects/Minireference/STATSbook/noBSstatsnotebooks/venv/lib/python3.9/site-packages (from pandas>=2.2.1->ministats) (2022.7.1)
Requirement already satisfied: patsy>=0.5.4 in /Users/ivan/Projects/Minireference/STATSbook/noBSstatsnotebooks/venv/lib/python3.9/site-packages (from statsmodels>=0.14.1->ministats) (0.5.6)
Requirement already satisfied: zipp>=3.1.0 in /Users/ivan/Projects/Minireference/STATSbook/noBSstatsnotebooks/venv/lib/python3.9/site-packages (from importlib-resources>=3.2.0->matplotlib>=3.8.3->ministats) (3.13.0)
Requirement already satisfied: six in /Users/ivan/Projects/Minireference/STATSbook/noBSstatsnotebooks/venv/lib/python3.9/site-packages (from patsy>=0.5.4->statsmodels>=0.14.1->ministats) (1.16.0)

[notice] A new release of pip is available: 23.0 -> 24.0
[notice] To update, run: pip3.9 install --upgrade pip
Note: you may need to restart the kernel to use updated packages.

In [5]:

from ministats import plot_pdf
from ministats import plot_cdf
from ministats import plot_pdf_and_cdf

from ministats import plot_pdf from ministats import plot_cdf from ministats import plot_pdf_and_cdf

In [ ]:

Review of formulas¶

Gamma function¶

In [6]:

from scipy.special import gamma as gammaf

gammaf(1)  # = 0! = 1

from scipy.special import gamma as gammaf gammaf(1) # = 0! = 1

Out[6]:

1.0

In [7]:

gammaf(2)  # = 1! = 1

gammaf(2) # = 1! = 1

Out[7]:

1.0

In [8]:

gammaf(3)  # = 2! = 2*1

gammaf(3) # = 2! = 2*1

Out[8]:

2.0

In [9]:

gammaf(4)  # = 3! = 3*2*1

gammaf(4) # = 3! = 3*2*1

Out[9]:

6.0

In [10]:

gammaf(5)  # = 4! = 4*3*2*1

gammaf(5) # = 4! = 4*3*2*1

Out[10]:

24.0

In [11]:

[gammaf(z) for z in [4, 4.1, 4.5, 4.9, 5]]

[gammaf(z) for z in [4, 4.1, 4.5, 4.9, 5]]

Out[11]:

[6.0, 6.812622863016677, 11.63172839656745, 20.66738596185786, 24.0]

In [ ]:

In [12]:

# plot gammaf between 0 and 5
xs = np.linspace(0.05, 5, 1000)
fXs = gammaf(xs)

ax = sns.lineplot(x=xs, y=fXs, label="$\\Gamma(z)$")
ax.set_xlabel("z")

# plot gammaf between 0 and 5 xs = np.linspace(0.05, 5, 1000) fXs = gammaf(xs) ax = sns.lineplot(x=xs, y=fXs, label="$\\Gamma(z)$") ax.set_xlabel("z")

Out[12]:

Text(0.5, 0, 'z')

In [ ]:

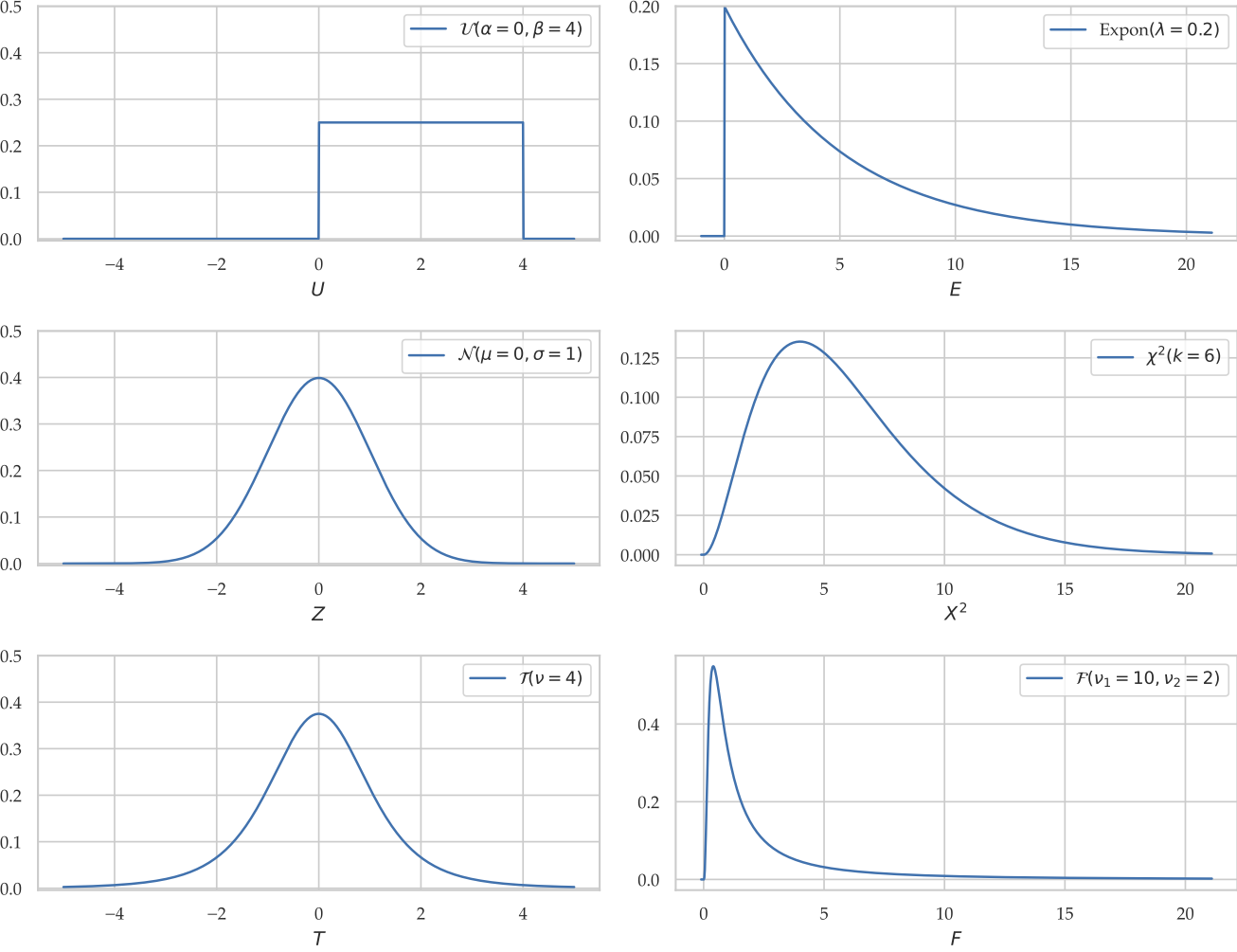

Continuous distribution reference¶

Uniform distribution¶

The uniform distribution $\mathcal{U}(\alpha,\beta)$ is described by the following probability density function:

$$ p_X(x) = \begin{cases} \frac{1}{\beta-\alpha} & \textrm{for } \alpha \leq x \leq \beta, \\ 0 & \textrm{for } x<0 \textrm{ or } x>1. \end{cases} $$

For a uniform distribution $\mathcal{U}(\alpha,\beta)$, each $x$ between $\alpha$ and $\beta$ is equally likely to occur, and values of $x$ outside this range have zero probability of occurring.

In [13]:

from scipy.stats import uniform
alpha = 2
beta = 7
rvU = uniform(alpha, beta-alpha)

from scipy.stats import uniform alpha = 2 beta = 7 rvU = uniform(alpha, beta-alpha)

In [14]:

# draw 10 random samples from X
rvU.rvs(10)

# draw 10 random samples from X rvU.rvs(10)

Out[14]:

array([3.87270059, 6.75357153, 5.65996971, 4.99329242, 2.7800932 ,
       2.7799726 , 2.29041806, 6.33088073, 5.00557506, 5.54036289])

In [15]:

plot_pdf(rvU, xlims=[0,9]);

plot_pdf(rvU, xlims=[0,9]);

In [16]:

# # ALT. use sns.lineplot
# # plot the probability density function (pdf) of the random variable X
# xs = np.linspace(0, 10, 1000)
# fUs = rvU.pdf(xs)
# sns.lineplot(x=xs, y=fUs)

# # ALT. use sns.lineplot # # plot the probability density function (pdf) of the random variable X # xs = np.linspace(0, 10, 1000) # fUs = rvU.pdf(xs) # sns.lineplot(x=xs, y=fUs)

In [ ]:

Cumulative distribution function¶

In [17]:

plot_pdf_and_cdf(rvU, xlims=[0,9]);

plot_pdf_and_cdf(rvU, xlims=[0,9]);

In [ ]:

Standard uniform distribution¶

The standard uniform distribution $U_s \sim \mathcal{U}(0,1)$ is described by the following probability density function:

$$ p_U(x) = \begin{cases} 1 & \textrm{for } 0 \leq x \leq 1, \\ 0 & \textrm{for } x<0 \textrm{ or } x>1. \end{cases} $$

where $U$ is the name of the random variable and $u$ are particular values it can take on.

The above equation describes tells you how likely it is to observe $\{U_s=x\}$. For a uniform distribution $\mathcal{U}(0,1)$, each $x$ between 0 and 1 is equally likely to occur, and values of $x$ outside this range have zero probability of occurring.

In [18]:

from scipy.stats import uniform

rvUs = uniform(0, 1)

from scipy.stats import uniform rvUs = uniform(0, 1)

In [19]:

# draw 10 random samples from X
rvUs.rvs(1)

# draw 10 random samples from X rvUs.rvs(1)

Out[19]:

array([0.02058449])

In [ ]:

In [20]:

import random

random.seed(3)

import random random.seed(3)

In [21]:

random.random()

random.random()

Out[21]:

0.23796462709189137

In [22]:

random.uniform(0,1)

random.uniform(0,1)

Out[22]:

0.5442292252959519

In [23]:

import numpy as np
np.random.seed(42)
np.random.rand(10)

import numpy as np np.random.seed(42) np.random.rand(10)

Out[23]:

array([0.37454012, 0.95071431, 0.73199394, 0.59865848, 0.15601864,
       0.15599452, 0.05808361, 0.86617615, 0.60111501, 0.70807258])

In [ ]:

In [24]:

plot_pdf_and_cdf(rvUs, xlims=[-1,2]);

plot_pdf_and_cdf(rvUs, xlims=[-1,2]);

Simulating other random variables¶

We can use the uniform random variable to generate random variables from other distributions. For example, suppose we want to generate observations of a coin toss random variable which comes out heads 50% of the time and tails 50% of the time.

We can use the standard uniform random variables obtained from random.random() and split the outcomes at the "halfway point" of the sample space, to generate the 50-50 randomness of a coin toss. The function flip_coin defined below shows how to do this:

In [25]:

def flip_coin():
    u = random.random()  # random number in [0,1]
    if u < 0.5:
        return "heads"
    else:
        return "tails"

def flip_coin(): u = random.random() # random number in [0,1] if u < 0.5: return "heads" else: return "tails"

In [26]:

# simulate one coin toss
flip_coin()

# simulate one coin toss flip_coin()

Out[26]:

'heads'

In [27]:

# simulate 10 coin tosses
[flip_coin() for i in range(0,10)]

# simulate 10 coin tosses [flip_coin() for i in range(0,10)]

Out[27]:

['tails',
 'tails',
 'heads',
 'heads',
 'tails',
 'heads',
 'heads',
 'tails',
 'heads',
 'tails']

In [ ]:

In [ ]:

Exponential¶

In [28]:

from scipy.stats import expon
lam = 7
loc = 0
scale = 1/lam
rvE = expon(loc, scale)

from scipy.stats import expon lam = 7 loc = 0 scale = 1/lam rvE = expon(loc, scale)

The computer model expon accepts as its first argument an optional "location" parameter, which can shift the exponential distribution to the right, but we want loc=0 to get the simple case, that corresponds to the un-shifted distribution $\textrm{Expon}(\lambda)$.

In [29]:

rvE.mean(), rvE.var()

rvE.mean(), rvE.var()

Out[29]:

(0.14285714285714285, 0.02040816326530612)

In [30]:

# math formulas for mean and var
1/lam, 1/lam**2

# math formulas for mean and var 1/lam, 1/lam**2

Out[30]:

(0.14285714285714285, 0.02040816326530612)

In [31]:

## ALT. we can obtain mean and ver using the .stats() method
##      The code below also computes the skewness and the kurtosis
# mean, var, skew, kurt = rvE.stats(moments='mvsk')
# mean, var, skew, kurt

## ALT. we can obtain mean and ver using the .stats() method ## The code below also computes the skewness and the kurtosis # mean, var, skew, kurt = rvE.stats(moments='mvsk') # mean, var, skew, kurt

In [ ]:

In [32]:

# f_E(5) = pdf value at x=10
rvE.pdf(0.2)

# f_E(5) = pdf value at x=10 rvE.pdf(0.2)

Out[32]:

1.7261787475912451

In [33]:

plot_pdf(rvE, xlims=[0,1.1]);

plot_pdf(rvE, xlims=[0,1.1]);

In [ ]:

In [ ]:

Normal¶

A random variable $N$ with a normal distribution $\mathcal{N}(\mu,\sigma)$ is described by the probability density function:

$$ f_N(x) = \tfrac{1}{\sigma\sqrt{2\pi}} e^{\small -\tfrac{(x-\mu)^2}{2\sigma^2}}. $$

The mean $\mu$ and the standard deviation $\sigma$ are called the parameters of the distribution. The math notation $\mathcal{N}(\mu, \sigma)$ is used to describe the whole family of normal probability distributions.

In [34]:

from scipy.stats import norm

mu = 10    # = 𝜇   where is the centre?
sigma = 3  # = 𝜎   how spread out is it?

rvN = norm(mu, sigma)

from scipy.stats import norm mu = 10 # = 𝜇 where is the centre? sigma = 3 # = 𝜎 how spread out is it? rvN = norm(mu, sigma)

In [35]:

rvN.mean(), rvN.var()

rvN.mean(), rvN.var()

Out[35]:

(10.0, 9.0)

In [36]:

plot_pdf(rvN, xlims=[-10,30]);

plot_pdf(rvN, xlims=[-10,30]);

In [37]:

# ALT. generate the plot manually

# create a normal random variable
from scipy.stats import norm
mean = 1000   # 𝜇 (mu)    = where is its center?
std = 100     # 𝜎 (sigma) = how spread out is it?
rvN = norm(mean, std)

# plot its probability density function (pdf)
xs = np.linspace(300, 1700, 1000)
ys = rvN.pdf(xs)
ax = sns.lineplot(x=xs, y=ys)

# ALT. generate the plot manually # create a normal random variable from scipy.stats import norm mean = 1000 # 𝜇 (mu) = where is its center? std = 100 # 𝜎 (sigma) = how spread out is it? rvN = norm(mean, std) # plot its probability density function (pdf) xs = np.linspace(300, 1700, 1000) ys = rvN.pdf(xs) ax = sns.lineplot(x=xs, y=ys)

In [ ]:

In [ ]:

Standard normal¶

A standard normal is denoted $Z$ with a normal distribution $\mathcal{N}(\mu=0,\sigma=1)$ and described by the probability density function:

$$ f_Z(z) = \tfrac{1}{\sqrt{2\pi}} e^{\small -\tfrac{z^2}{2}}. $$

In [38]:

from scipy.stats import norm

rvZ = norm(0,1)

from scipy.stats import norm rvZ = norm(0,1)

In [39]:

rvZ.mean(), rvZ.var()

rvZ.mean(), rvZ.var()

Out[39]:

(0.0, 1.0)

In [40]:

fig, ax = plt.subplots()

plot_pdf(rvZ, xlims=[-4,4], ax=ax, rv_name="Z")

fig, ax = plt.subplots() plot_pdf(rvZ, xlims=[-4,4], ax=ax, rv_name="Z")

Out[40]:

<Axes: xlabel='z', ylabel='$f_{Z}$'>

In [ ]:

Cumulative probabilities in the tails¶

Probability of $Z$ being smaller than $-2.2$.

In [41]:

rvZ.cdf(-2.3)

rvZ.cdf(-2.3)

Out[41]:

0.010724110021675809

Probability of $Z$ being greater than $2.2$.

In [42]:

1 - rvZ.cdf(2.3)

1 - rvZ.cdf(2.3)

Out[42]:

0.010724110021675837

Probability of $|Z| > 2.2$.

In [43]:

rvZ.cdf(-2.3) + (1-rvZ.cdf(2.3))

rvZ.cdf(-2.3) + (1-rvZ.cdf(2.3))

Out[43]:

0.021448220043351646

In [44]:

norm.cdf(-2.3,0,1) + (1-norm.cdf(2.3,0,1))

norm.cdf(-2.3,0,1) + (1-norm.cdf(2.3,0,1))

Out[44]:

0.021448220043351646

Inverse cumulative distribution calculations¶

In [45]:

rvZ.ppf(0.05)

rvZ.ppf(0.05)

Out[45]:

-1.6448536269514729

In [46]:

rvZ.ppf(0.95)

rvZ.ppf(0.95)

Out[46]:

1.6448536269514722

In [47]:

rvZ.interval(0.9)

rvZ.interval(0.9)

Out[47]:

(-1.6448536269514729, 1.6448536269514722)

In [ ]:

Student's $t$-distribution¶

This is a generalization of the standard normal with "heavy" tails.

In [48]:

from scipy.stats import t

df = 10
rvT = t(df)

from scipy.stats import t df = 10 rvT = t(df)

In [49]:

ax = plot_pdf(rvT, xlims=[-5,5], label=f"t({df})")
plot_pdf(rvZ, xlims=[-5,5], ax=ax, label="Z");

ax = plot_pdf(rvT, xlims=[-5,5], label=f"t({df})") plot_pdf(rvZ, xlims=[-5,5], ax=ax, label="Z");

In [50]:

rvT.mean(), rvT.var()

rvT.mean(), rvT.var()

Out[50]:

(0.0, 1.25)

In [51]:

# Kurtosis formula  kurt(rvT) = 6/(df-4) for df>4
rvT.stats("k")

# Kurtosis formula kurt(rvT) = 6/(df-4) for df>4 rvT.stats("k")

Out[51]:

1.0

In [ ]:

In [52]:

rvT.cdf(-2.3)

rvT.cdf(-2.3)

Out[52]:

0.022127156642143552

In [53]:

rvT.ppf(0.05), rvT.ppf(0.95)

rvT.ppf(0.05), rvT.ppf(0.95)

Out[53]:

(-1.8124611228107341, 1.8124611228107335)

In [ ]:

In [54]:

fig, ax = plt.subplots()

linestyles = ['solid', 'dashdot', 'dashed', 'dotted']

for i, df in enumerate([2,5,10,100]):
    rvT = t(df)
    linestyle = linestyles[i]
    plot_pdf(rvT, xlims=[-5,5], ax=ax, label="$\\nu={}$".format(df), linestyle=linestyle)

fig, ax = plt.subplots() linestyles = ['solid', 'dashdot', 'dashed', 'dotted'] for i, df in enumerate([2,5,10,100]): rvT = t(df) linestyle = linestyles[i] plot_pdf(rvT, xlims=[-5,5], ax=ax, label="$\\nu={}$".format(df), linestyle=linestyle)

In [ ]:

Snedecor's $F$-distribution¶

In [55]:

from scipy.stats import f

df1, df2 = 15, 10
rvF = f(df1, df2)

from scipy.stats import f df1, df2 = 15, 10 rvF = f(df1, df2)

In [56]:

rvF.mean(), rvF.var()

rvF.mean(), rvF.var()

Out[56]:

(1.25, 0.7986111111111112)

In [57]:

plot_pdf(rvF, xlims=[0,5]);

plot_pdf(rvF, xlims=[0,5]);

In [ ]:

In [ ]:

Chi-squared distribution¶

In [58]:

from scipy.stats import chi2

k = 10
rvX2 = chi2(k)

from scipy.stats import chi2 k = 10 rvX2 = chi2(k)

In [59]:

rvX2.mean(), rvX2.var()

rvX2.mean(), rvX2.var()

Out[59]:

(10.0, 20.0)

In [60]:

1 - rvX2.cdf(20)

1 - rvX2.cdf(20)

Out[60]:

0.02925268807696113

In [61]:

plot_pdf(rvX2, xlims=[0,40]);

plot_pdf(rvX2, xlims=[0,40]);

In [ ]:

In [ ]:

Gamma (optional)¶

https://en.wikipedia.org/wiki/Gamma_distribution

https://docs.scipy.org/doc/scipy/reference/generated/scipy.stats.gamma.html

In [62]:

from scipy.stats import gamma as gammad

alpha = 4
loc = 0
lam = 2
beta = 1/lam

rvG = gammad(alpha, loc, beta)

from scipy.stats import gamma as gammad alpha = 4 loc = 0 lam = 2 beta = 1/lam rvG = gammad(alpha, loc, beta)

In [63]:

rvG.mean(), rvG.var()

rvG.mean(), rvG.var()

Out[63]:

(2.0, 1.0)

In [64]:

plot_pdf(rvG, xlims=[0,5]);

plot_pdf(rvG, xlims=[0,5]);

In [ ]:

In [ ]:

Beta (optional)¶

In [65]:

from scipy.stats import beta as betad

alpha = 3
beta = 7

rvB = betad(alpha, beta)

from scipy.stats import beta as betad alpha = 3 beta = 7 rvB = betad(alpha, beta)

In [66]:

rvB.mean(), rvB.var()

rvB.mean(), rvB.var()

Out[66]:

(0.3, 0.019090909090909092)

In [67]:

plot_pdf(rvB, xlims=[0,1]);

plot_pdf(rvB, xlims=[0,1]);

In [ ]:

In [ ]:

Cauchy (optional)¶

In [68]:

from scipy.stats import cauchy

x0 = 3
gamma = 5

rvC = cauchy(x0, gamma)

from scipy.stats import cauchy x0 = 3 gamma = 5 rvC = cauchy(x0, gamma)

In [69]:

rvC.mean(), rvC.var()

rvC.mean(), rvC.var()

Out[69]:

(nan, nan)

In [70]:

plot_pdf(rvC, xlims=[-40,40]);

plot_pdf(rvC, xlims=[-40,40]);

In [ ]:

In [ ]:
