Section 4.5 — Model selection for causal inference¶

This notebook contains the code examples from Section 4.5 Model selection for causal inference from the No Bullshit Guide to Statistics.

Notebook setup¶

In [1]:

# load Python modules
import os
import numpy as np
import pandas as pd
import seaborn as sns

# load Python modules import os import numpy as np import pandas as pd import seaborn as sns

In [2]:

# Figures setup
import matplotlib.pyplot as plt
plt.clf()  # needed otherwise `sns.set_theme` doesn't work
from plot_helpers import RCPARAMS
RCPARAMS.update({'figure.figsize': (7, 4)})   # good for screen
# RCPARAMS.update({'figure.figsize': (3, 2.5)})  # good for print
sns.set_theme(
    context="paper",
    style="whitegrid",
    palette="colorblind",
    rc=RCPARAMS,
)

# High-resolution please
%config InlineBackend.figure_format = 'retina'

# Where to store figures
DESTDIR = "figures/lm/modelselection"

from ministats.utils import savefigure

# Figures setup import matplotlib.pyplot as plt plt.clf() # needed otherwise `sns.set_theme` doesn't work from plot_helpers import RCPARAMS RCPARAMS.update({'figure.figsize': (7, 4)}) # good for screen # RCPARAMS.update({'figure.figsize': (3, 2.5)}) # good for print sns.set_theme( context="paper", style="whitegrid", palette="colorblind", rc=RCPARAMS, ) # High-resolution please %config InlineBackend.figure_format = 'retina' # Where to store figures DESTDIR = "figures/lm/modelselection" from ministats.utils import savefigure

<Figure size 640x480 with 0 Axes>

Definitions¶

Causal graphs¶

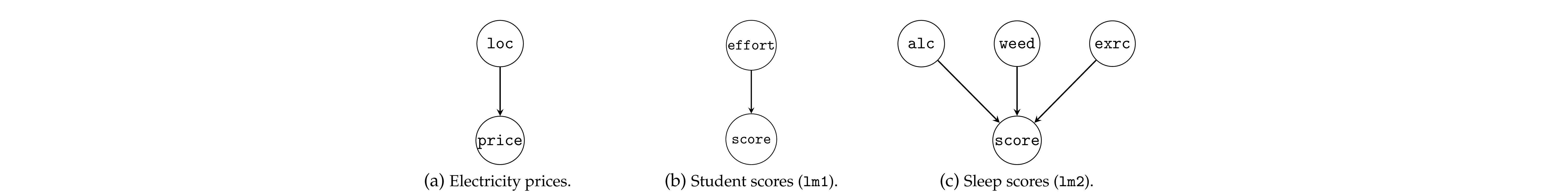

Simple graphs¶

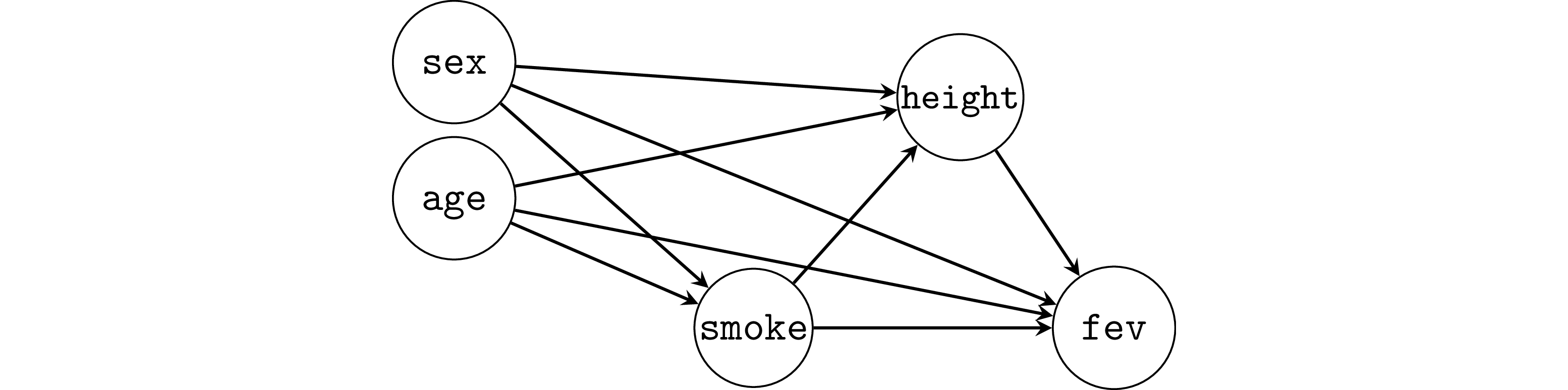

More complicated graphs¶

Unobserved confounder¶

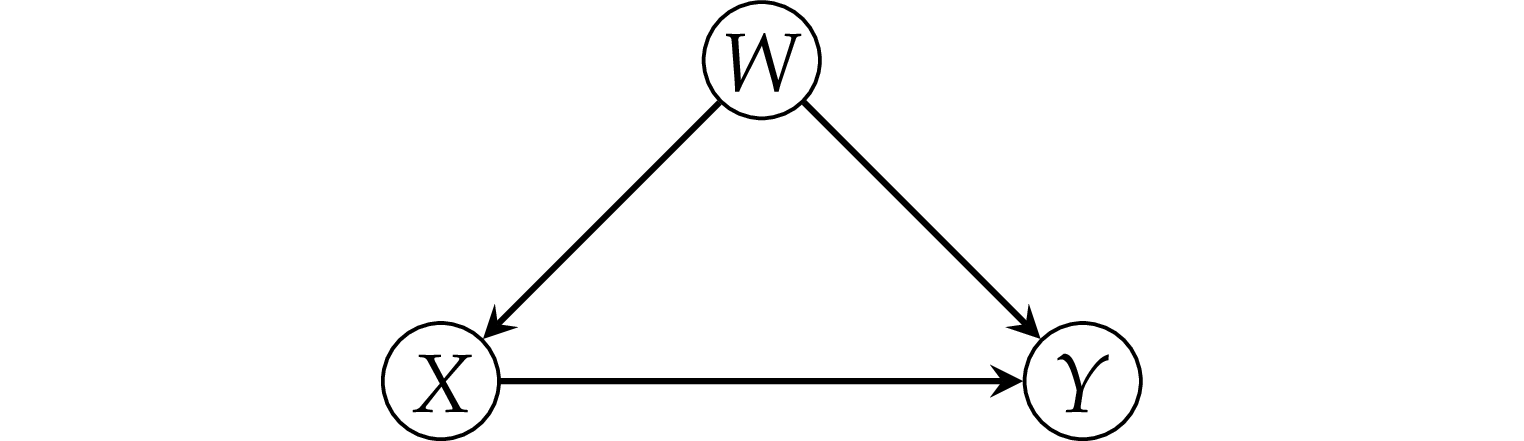

The fork pattern¶

Example 1: simple fork¶

Consider a dataset where there is zero causal effect between $X$ and $Y$.

In [3]:

from scipy.stats import norm
np.random.seed(41)

n = 200
ws = norm(0,1).rvs(n)
xs = 2*ws + norm(0,1).rvs(n)
ys = 0*xs + 3*ws + norm(0,1).rvs(n)

df1 = pd.DataFrame({"x": xs, "w": ws, "y": ys})

from scipy.stats import norm np.random.seed(41) n = 200 ws = norm(0,1).rvs(n) xs = 2*ws + norm(0,1).rvs(n) ys = 0*xs + 3*ws + norm(0,1).rvs(n) df1 = pd.DataFrame({"x": xs, "w": ws, "y": ys})

First let's fit a native model y ~ x to see what happens.

In [4]:

import statsmodels.formula.api as smf
lm1a = smf.ols("y ~ 1 + x", data=df1).fit()
lm1a.params

import statsmodels.formula.api as smf lm1a = smf.ols("y ~ 1 + x", data=df1).fit() lm1a.params

Out[4]:

Intercept   -0.118596
x            1.268185
dtype: float64

In [5]:

from ministats import plot_reg
plot_reg(lm1a)

filename = os.path.join(DESTDIR, "simple_fork_y_vs_x.pdf")
savefigure(plt.gcf(), filename)

from ministats import plot_reg plot_reg(lm1a) filename = os.path.join(DESTDIR, "simple_fork_y_vs_x.pdf") savefigure(plt.gcf(), filename)

Saved figure to figures/lm/modelselection/simple_fork_y_vs_x.pdf
Saved figure to figures/lm/modelselection/simple_fork_y_vs_x.png

Recall the true strength of the causal association $X \to Y$ is zero, so the $\widehat{\beta}_{\tt{x}}=1.268$ is a wrong estimate.

Now let's fit another model that controls for the common cause $W$, and thus removes the confounding.

In [6]:

lm1b = smf.ols("y ~ 1 + x + w", data=df1).fit()
lm1b.params

lm1b = smf.ols("y ~ 1 + x + w", data=df1).fit() lm1b.params

Out[6]:

Intercept   -0.089337
x            0.077516
w            2.859363
dtype: float64

The model lm1b correctly recovers causal association close to zero.

In [7]:

from ministats import plot_partreg
plot_partreg(lm1b, pred="x")

filename = os.path.join(DESTDIR, "simple_fork_y_vs_x_given_w.pdf")
savefigure(plt.gcf(), filename)

from ministats import plot_partreg plot_partreg(lm1b, pred="x") filename = os.path.join(DESTDIR, "simple_fork_y_vs_x_given_w.pdf") savefigure(plt.gcf(), filename)

Saved figure to figures/lm/modelselection/simple_fork_y_vs_x_given_w.pdf
Saved figure to figures/lm/modelselection/simple_fork_y_vs_x_given_w.png

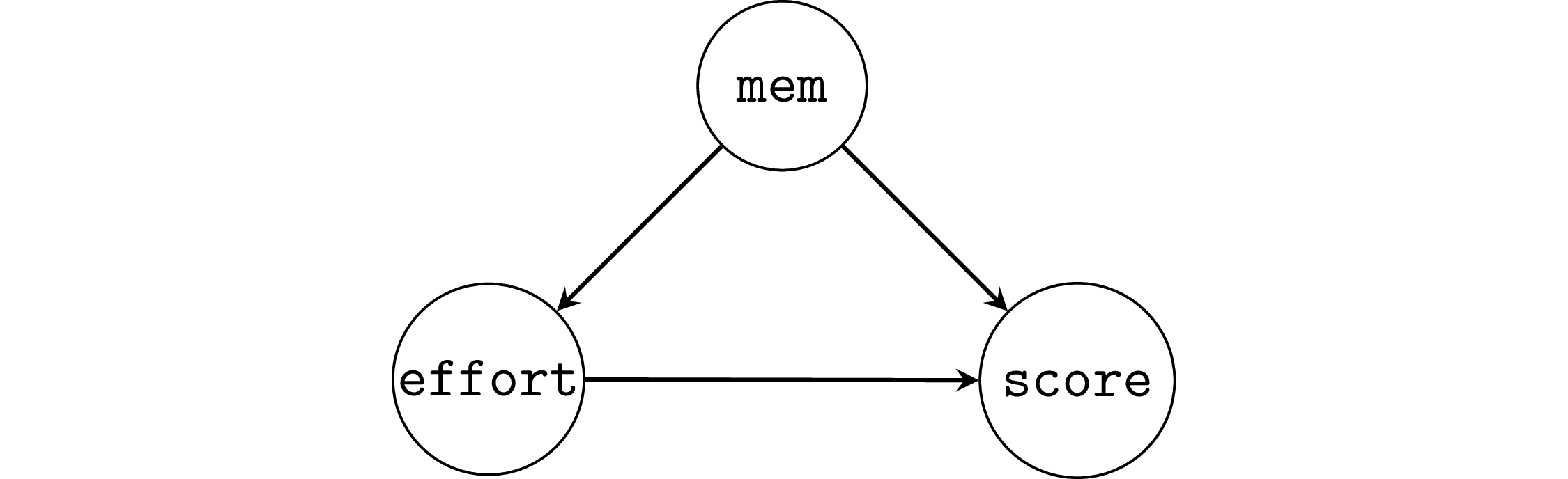

Example 2: student's memory capacity¶

In [8]:

np.random.seed(43)

n = 100
mems = norm(5,1).rvs(n)
efforts = 20 - 3*mems + norm(0,1).rvs(n)
scores = 10*mems + 2*efforts + norm(0,1).rvs(n)

df2 = pd.DataFrame({"mem": mems,
                    "effort": efforts,
                    "score": scores})

np.random.seed(43) n = 100 mems = norm(5,1).rvs(n) efforts = 20 - 3*mems + norm(0,1).rvs(n) scores = 10*mems + 2*efforts + norm(0,1).rvs(n) df2 = pd.DataFrame({"mem": mems, "effort": efforts, "score": scores})

First let's fit a model that doesn't account for the common cause.

In [9]:

lm2a = smf.ols("score ~ 1 + effort", data=df2).fit()
lm2a.params

lm2a = smf.ols("score ~ 1 + effort", data=df2).fit() lm2a.params

Out[9]:

Intercept    64.275333
effort       -0.840428
dtype: float64

We see a negative effect $\widehat{\beta}_{\tt{effort}}=-0.84$, the true effect is $+2$.

Now we fit a model that includes mem, i.e., we control for the common cause confounder.

In [10]:

lm2b = smf.ols("score ~ 1 + effort + mem", data=df2).fit()
lm2b.params

lm2b = smf.ols("score ~ 1 + effort + mem", data=df2).fit() lm2b.params

Out[10]:

Intercept    2.650981
effort       1.889825
mem          9.568862
dtype: float64

The model lm2b correctly recovers causal association $1.89$, which is close to the true value $2$.

Benefits of random assignment¶

TODO explain

In [ ]:

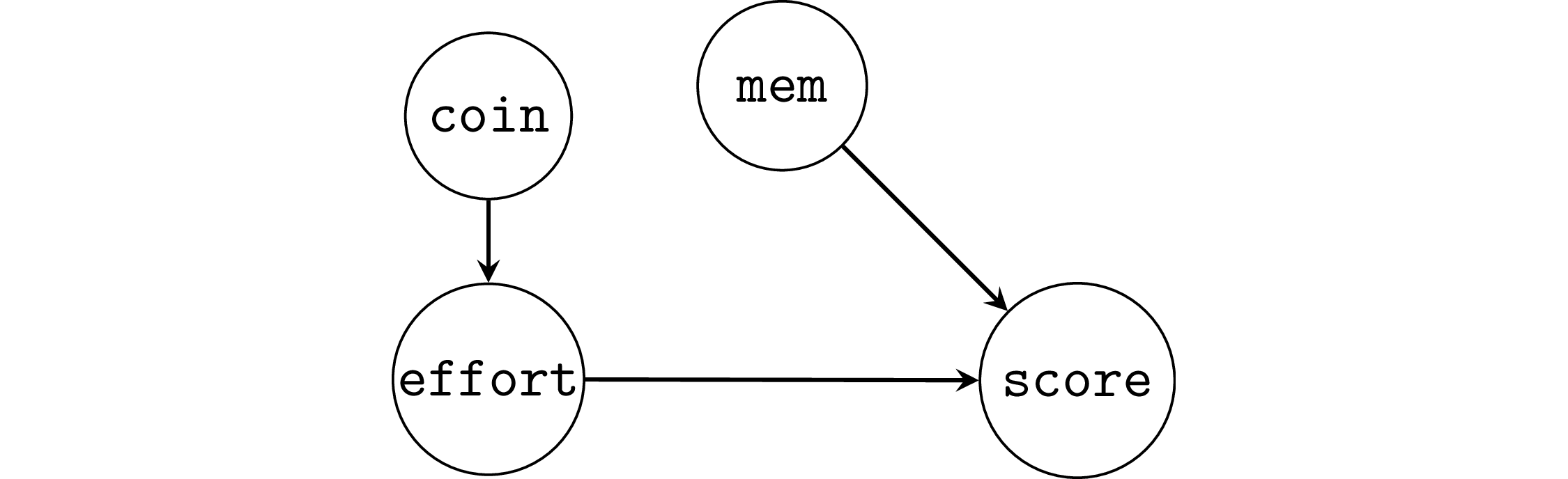

Example 2R: random assignment of the effort variable¶

Suppose students are randomly assigned into a low effort (5h/week) and high effort (15h/week) groups by flipping a coin.

In [11]:

from scipy.stats import bernoulli
np.random.seed(47)

n = 300
mems = norm(5,1).rvs(n)
coins = bernoulli(p=0.5).rvs(n)
efforts = 5*coins + 15*(1-coins)
scores = 10*mems + 2*efforts + norm(0,1).rvs(n)

df2r = pd.DataFrame({"mem": mems,
                     "effort": efforts,
                     "score": scores})

from scipy.stats import bernoulli np.random.seed(47) n = 300 mems = norm(5,1).rvs(n) coins = bernoulli(p=0.5).rvs(n) efforts = 5*coins + 15*(1-coins) scores = 10*mems + 2*efforts + norm(0,1).rvs(n) df2r = pd.DataFrame({"mem": mems, "effort": efforts, "score": scores})

The effect of the random assignment is to decouple effort from mem, thus removing the association, as we can see if we compare the correlations in the original dataset df2 and the randomized dataset df2r.

In [12]:

# non-randomized              # with random assignment
df2.corr()["mem"]["effort"],  df2r.corr()["mem"]["effort"]

# non-randomized # with random assignment df2.corr()["mem"]["effort"], df2r.corr()["mem"]["effort"]

Out[12]:

(-0.9452404905554658, 0.037005646395469514)

Randomization allows us to recover the correct estimate, even without including the common cause.

In [13]:

lm2r = smf.ols("score ~ 1 + effort", data=df2r).fit()
lm2r.params

lm2r = smf.ols("score ~ 1 + effort", data=df2r).fit() lm2r.params

Out[13]:

Intercept    49.176242
effort        2.077639
dtype: float64

Note we can also including mem in the model, and that doesn't hurt.

In [14]:

lm2rm = smf.ols("score ~ 1 + effort + mem", data=df2r).fit()
lm2rm.params

lm2rm = smf.ols("score ~ 1 + effort + mem", data=df2r).fit() lm2rm.params

Out[14]:

Intercept    -0.343982
effort        2.002295
mem          10.063906
dtype: float64

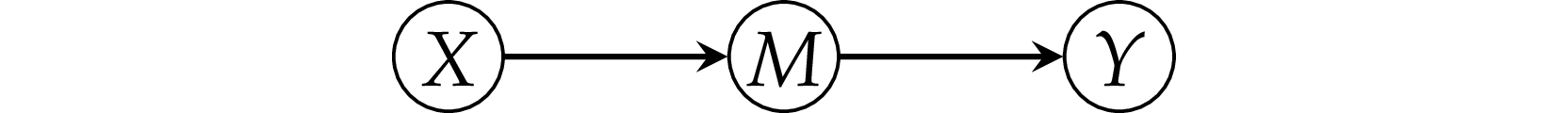

The pipe pattern¶

Example 3: simple pipe¶

In [15]:

np.random.seed(42)

n = 300
xs = norm(0,1).rvs(n)
ms = xs + norm(0,1).rvs(n)
ys = ms + norm(0,1).rvs(n)

df3 = pd.DataFrame({"x": xs, "m": ms, "y": ys})

np.random.seed(42) n = 300 xs = norm(0,1).rvs(n) ms = xs + norm(0,1).rvs(n) ys = ms + norm(0,1).rvs(n) df3 = pd.DataFrame({"x": xs, "m": ms, "y": ys})

First we fit the model y ~ 1 + x that doesn't include the variable $M$, which is the correct thing to do.

In [16]:

lm3a = smf.ols("y ~ 1 + x", data=df3).fit()
lm3a.params

lm3a = smf.ols("y ~ 1 + x", data=df3).fit() lm3a.params

Out[16]:

Intercept    0.060272
x            0.922122
dtype: float64

In [17]:

from ministats import plot_reg
plot_reg(lm3a)

ax = plt.gca()
# ax.set_title("Regression plot")
filename = os.path.join(DESTDIR, "simple_pipe_y_vs_x.pdf")
savefigure(plt.gcf(), filename)

from ministats import plot_reg plot_reg(lm3a) ax = plt.gca() # ax.set_title("Regression plot") filename = os.path.join(DESTDIR, "simple_pipe_y_vs_x.pdf") savefigure(plt.gcf(), filename)

Saved figure to figures/lm/modelselection/simple_pipe_y_vs_x.pdf
Saved figure to figures/lm/modelselection/simple_pipe_y_vs_x.png

However, if we were choose to include $M$ in the model, we get a completely different result.

In [18]:

lm3b = smf.ols("y ~ 1 + x + m", data=df3).fit()
lm3b.params

lm3b = smf.ols("y ~ 1 + x + m", data=df3).fit() lm3b.params

Out[18]:

Intercept    0.081242
x           -0.005561
m            0.965910
dtype: float64

In [19]:

from ministats import plot_partreg
plot_partreg(lm3b, pred="x");

filename = os.path.join(DESTDIR, "simple_pipe_y_vs_x_given_m.pdf")
savefigure(plt.gcf(), filename)

from ministats import plot_partreg plot_partreg(lm3b, pred="x"); filename = os.path.join(DESTDIR, "simple_pipe_y_vs_x_given_m.pdf") savefigure(plt.gcf(), filename)

Saved figure to figures/lm/modelselection/simple_pipe_y_vs_x_given_m.pdf
Saved figure to figures/lm/modelselection/simple_pipe_y_vs_x_given_m.png

In [20]:

# ALT
# from statsmodels.graphics.api import plot_partregress
# with plt.rc_context({"figure.figsize":(3, 2.5)}):
#     plot_partregress("y", "x",  exog_others=["m"], data=df3, obs_labels=False)
#     ax = plt.gca()
#     ax.set_title("Partial regression plot")
#     ax.set_xlabel("e(x | m)")
#     ax.set_ylabel("e(y | m)")
#     filename = os.path.join(DESTDIR, "simple_pipe_partregress_y_vs_x.pdf")
#     savefigure(plt.gcf(), filename)

# ALT # from statsmodels.graphics.api import plot_partregress # with plt.rc_context({"figure.figsize":(3, 2.5)}): # plot_partregress("y", "x", exog_others=["m"], data=df3, obs_labels=False) # ax = plt.gca() # ax.set_title("Partial regression plot") # ax.set_xlabel("e(x | m)") # ax.set_ylabel("e(y | m)") # filename = os.path.join(DESTDIR, "simple_pipe_partregress_y_vs_x.pdf") # savefigure(plt.gcf(), filename)

In [21]:

# # OLD ALT. using plot_lm_partial not a good plot,
# #      since it still shows the trend
# from ministats import plot_lm_partial
# sns.scatterplot(data=df3, x="x", y="y")
# plot_lm_partial(lm3b, "x")
# filename = os.path.join(DESTDIR, "simple_pipe_y_vs_x_given_m.pdf")
# savefigure(plt.gcf(), filename)

# # OLD ALT. using plot_lm_partial not a good plot, # # since it still shows the trend # from ministats import plot_lm_partial # sns.scatterplot(data=df3, x="x", y="y") # plot_lm_partial(lm3b, "x") # filename = os.path.join(DESTDIR, "simple_pipe_y_vs_x_given_m.pdf") # savefigure(plt.gcf(), filename)

Example 4: student competency as a mediator¶

Students score as a function of effort. We assume the final scores for the course was mediated through improvements in competency with the material (comp).

In [22]:

np.random.seed(42)

n = 200
efforts = norm(9,2).rvs(n)
comps = 2*efforts + norm(0,1).rvs(n)
scores = 3*comps + norm(0,1).rvs(n)

df4 = pd.DataFrame({"effort": efforts,
                    "comp": comps,
                    "score": scores})

np.random.seed(42) n = 200 efforts = norm(9,2).rvs(n) comps = 2*efforts + norm(0,1).rvs(n) scores = 3*comps + norm(0,1).rvs(n) df4 = pd.DataFrame({"effort": efforts, "comp": comps, "score": scores})

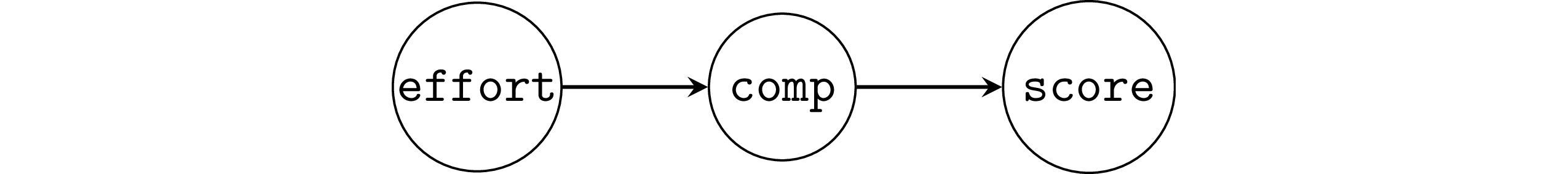

The causal graph in this situation is an instance of the mediator pattern, so the correct modelling decision is not to include the comp variable, which allows us to recover the correct parameter.

In [23]:

lm4a = smf.ols("score ~ 1 + effort", data=df4).fit()
lm4a.params

lm4a = smf.ols("score ~ 1 + effort", data=df4).fit() lm4a.params

Out[23]:

Intercept   -0.538521
effort       6.079663
dtype: float64

However, if we make the mistake of including the variable comp in the model, we will obtain a zero parameter for the effort, which is a wrong conclusion.

In [24]:

lm4b = smf.ols("score ~ 1 + effort + comp", data=df4).fit()
lm4b.params

lm4b = smf.ols("score ~ 1 + effort + comp", data=df4).fit() lm4b.params

Out[24]:

Intercept    0.545934
effort      -0.030261
comp         2.979818
dtype: float64

It even appears that effort has a small negative effect.

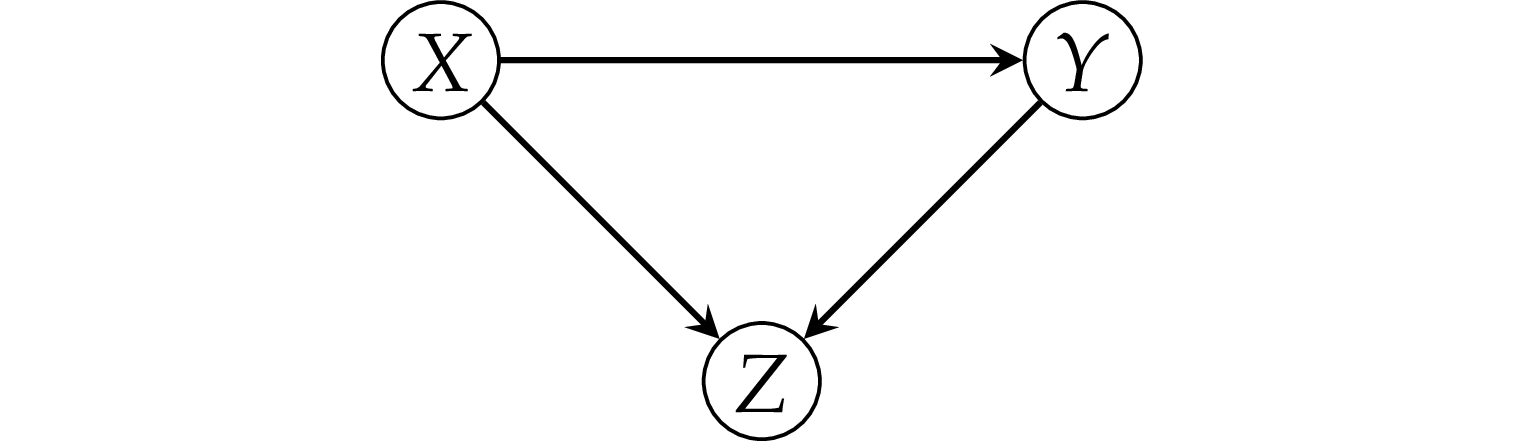

The collider pattern¶

Example 5: simple collider¶

In [25]:

np.random.seed(42)

n = 300
xs = norm(0,1).rvs(n)
ys = norm(0,1).rvs(n)
zs = (xs + ys >= 1.7).astype(int)

df5 = pd.DataFrame({"x": xs, "y": ys, "z": zs})

np.random.seed(42) n = 300 xs = norm(0,1).rvs(n) ys = norm(0,1).rvs(n) zs = (xs + ys >= 1.7).astype(int) df5 = pd.DataFrame({"x": xs, "y": ys, "z": zs})

Note y is completely independent of x. And if we were to fit the model y ~ x we get the correct result.

In [26]:

lm5a = smf.ols("y ~ 1 + x", data=df5).fit()
lm5a.params

lm5a = smf.ols("y ~ 1 + x", data=df5).fit() lm5a.params

Out[26]:

Intercept   -0.021710
x           -0.039576
dtype: float64

In [27]:

plot_reg(lm5a)

ax = plt.gca()
filename = os.path.join(DESTDIR, "simple_collider_y_vs_x.pdf")
savefigure(plt.gcf(), filename)

plot_reg(lm5a) ax = plt.gca() filename = os.path.join(DESTDIR, "simple_collider_y_vs_x.pdf") savefigure(plt.gcf(), filename)

Saved figure to figures/lm/modelselection/simple_collider_y_vs_x.pdf
Saved figure to figures/lm/modelselection/simple_collider_y_vs_x.png

Including $Z$ in the model incorrectly shows $X \to Y$ association.

In [28]:

lm5b = smf.ols("y ~ 1 + x + z", data=df5).fit()
lm5b.params

lm5b = smf.ols("y ~ 1 + x + z", data=df5).fit() lm5b.params

Out[28]:

Intercept   -0.170415
x           -0.244277
z            1.639660
dtype: float64

In [29]:

from ministats import plot_partreg
plot_partreg(lm5b, pred="x");

filename = os.path.join(DESTDIR, "simple_collider_y_vs_x_given_z.pdf")
savefigure(plt.gcf(), filename)

from ministats import plot_partreg plot_partreg(lm5b, pred="x"); filename = os.path.join(DESTDIR, "simple_collider_y_vs_x_given_z.pdf") savefigure(plt.gcf(), filename)

Saved figure to figures/lm/modelselection/simple_collider_y_vs_x_given_z.pdf
Saved figure to figures/lm/modelselection/simple_collider_y_vs_x_given_z.png

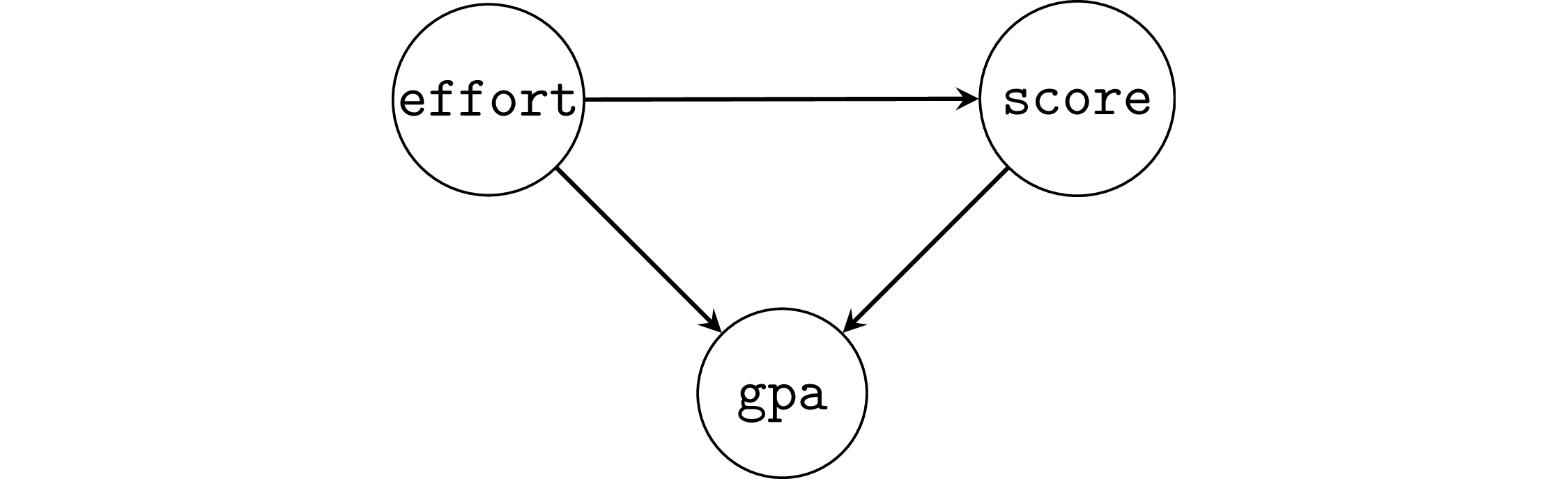

Example 6: student GPA as a collider¶

In [30]:

np.random.seed(46)

n = 300
efforts = norm(9,2).rvs(n)
scores = 5*efforts + norm(10,10).rvs(n)
gpas = 0.1*efforts + 0.02*scores + norm(0.6,0.3).rvs(n)

df6 = pd.DataFrame({"effort": efforts,
                    "score": scores,
                    "gpa": gpas})

np.random.seed(46) n = 300 efforts = norm(9,2).rvs(n) scores = 5*efforts + norm(10,10).rvs(n) gpas = 0.1*efforts + 0.02*scores + norm(0.6,0.3).rvs(n) df6 = pd.DataFrame({"effort": efforts, "score": scores, "gpa": gpas})

When we don't adjust for the collider gpa, we obtain the correct effect of effort on scores.

In [31]:

lm6a = smf.ols("score ~ 1 + effort", data=df6).fit()
lm6a.params

lm6a = smf.ols("score ~ 1 + effort", data=df6).fit() lm6a.params

Out[31]:

Intercept    12.747478
effort        4.717006
dtype: float64

But with adjustment for gpa reduces the effect significantly.

In [32]:

lm6b = smf.ols("score ~ 1 + effort + gpa", data=df6).fit()
lm6b.params

lm6b = smf.ols("score ~ 1 + effort + gpa", data=df6).fit() lm6b.params

Out[32]:

Intercept     1.464950
effort        1.177600
gpa          16.624215
dtype: float64

Selection bias as a collider¶

https://en.wikipedia.org/wiki/Berkson's_paradox

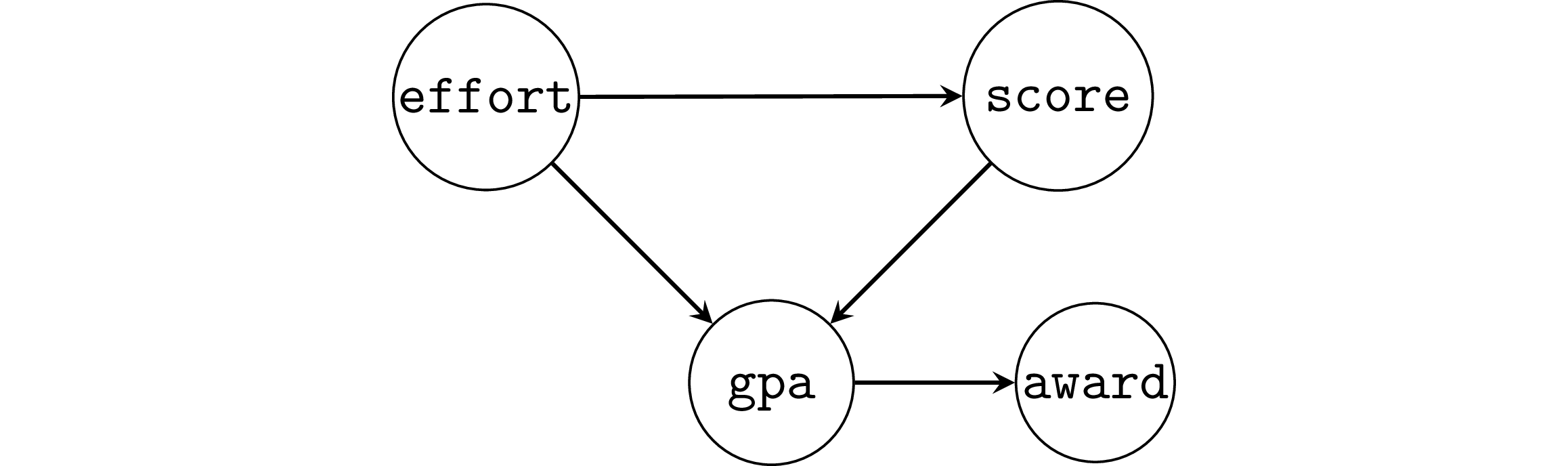

Example 6SB: selection bias¶

Suppose the study was conducted only on students who obtained an award, which is given to students with GPA 3.4 or greater.

In [33]:

df6sb = df6[df6["gpa"]>=3.4]
lm6sb = smf.ols("score ~ 1 + effort", data=df6sb).fit()
lm6sb.params

df6sb = df6[df6["gpa"]>=3.4] lm6sb = smf.ols("score ~ 1 + effort", data=df6sb).fit() lm6sb.params

Out[33]:

Intercept    78.588495
effort       -0.126503
dtype: float64

A negative causal association appears, which is very misleading.

Explanations¶

Backdoor path criterion¶

Revisiting the three patterns¶

Examples of more complicated graphs¶

(a) Pipe and fork¶

Summary:

• confounder of the mediator $M$ also confounds $X$ and $Y$
• unadjusted estimate is biased
• adjusting for $Z$ blocks backdoor path
• $Z$ is a good control

In [34]:

from scipy.stats import norm

np.random.seed(42)

n = 1000
ws = norm(0,1).rvs(n)
xs = ws + norm(0,1).rvs(n)
ms = xs + ws + norm(0,1).rvs(n)
ys = ms + norm(0,1).rvs(n)
dfa = pd.DataFrame({"w":ws, "x":xs, "m":ms, "y":ys})

# unadjusted estimate is confounded
lma_unadj = smf.ols("y ~ 1 + x", data=dfa).fit()
print(lma_unadj.params)

# adjusting for W recovers the causal effect
lma_adj = smf.ols("y ~ 1 + x + w", data=dfa).fit()
print(lma_adj.params)

from scipy.stats import norm np.random.seed(42) n = 1000 ws = norm(0,1).rvs(n) xs = ws + norm(0,1).rvs(n) ms = xs + ws + norm(0,1).rvs(n) ys = ms + norm(0,1).rvs(n) dfa = pd.DataFrame({"w":ws, "x":xs, "m":ms, "y":ys}) # unadjusted estimate is confounded lma_unadj = smf.ols("y ~ 1 + x", data=dfa).fit() print(lma_unadj.params) # adjusting for W recovers the causal effect lma_adj = smf.ols("y ~ 1 + x + w", data=dfa).fit() print(lma_adj.params)

Intercept   -0.034927
x            1.458856
dtype: float64
Intercept   -0.008234
x            0.932850
w            1.072638
dtype: float64

(b) M-bias example¶

Summary:

• although $Z$ is a pre-treament variable, as well as correlated both with $X$ and $Y$, it is not a confounder
• unadjusted estimate is unbiased
• adjusting for $Z$ opens the colliding path $X \leftarrow P \rightarrow Z \leftarrow Q \rightarrow Y$
• $Z$ is a bad control

In [35]:

# simulate data (linear model)
np.random.seed(47)

n = 1000
ps = norm(0,1).rvs(n)
qs = norm(0,1).rvs(n)
zs = ps + qs + norm(0,1).rvs(n)
xs = ps + norm(0,1).rvs(n)
ys = xs - 4*qs + norm(0,1).rvs(n)
dfb = pd.DataFrame({"x":xs, "p":ps, "q":qs, "z":zs, "y":ys})

# unadjusted estimate is *not* confounded!
lmb_unadj = smf.ols("y ~ 1 + x", data=dfb).fit()
print(lmb_unadj.params)

# adjusting for Z induces bias!
lmb_adj = smf.ols("y ~ 1 + x + z", data=dfb).fit()
print(lmb_adj.params)

# simulate data (linear model) np.random.seed(47) n = 1000 ps = norm(0,1).rvs(n) qs = norm(0,1).rvs(n) zs = ps + qs + norm(0,1).rvs(n) xs = ps + norm(0,1).rvs(n) ys = xs - 4*qs + norm(0,1).rvs(n) dfb = pd.DataFrame({"x":xs, "p":ps, "q":qs, "z":zs, "y":ys}) # unadjusted estimate is *not* confounded! lmb_unadj = smf.ols("y ~ 1 + x", data=dfb).fit() print(lmb_unadj.params) # adjusting for Z induces bias! lmb_adj = smf.ols("y ~ 1 + x + z", data=dfb).fit() print(lmb_adj.params)

Intercept   -0.205050
x            0.964068
dtype: float64
Intercept   -0.171269
x            1.720329
z           -1.592446
dtype: float64

(c) Indirect confounder¶

In [36]:

np.random.seed(47)

n = 1000
ws = norm(0,1).rvs(n)
vs = ws + norm(0,1).rvs(n)
xs = ws + norm(0,1).rvs(n)
ys = xs - vs + norm(0,1).rvs(n)
dfc = pd.DataFrame({"x":xs, "v":vs, "w":ws, "y":ys})

# unadjusted estimate is confounded
lmc_unadj = smf.ols("y ~ 1 + x", data=dfc).fit()
print(lmc_unadj.params)

# adjusting for W (or V) recovers the causal effect
lmc_adj = smf.ols("y ~ 1 + x + w", data=dfc).fit()
print(lmc_adj.params)

np.random.seed(47) n = 1000 ws = norm(0,1).rvs(n) vs = ws + norm(0,1).rvs(n) xs = ws + norm(0,1).rvs(n) ys = xs - vs + norm(0,1).rvs(n) dfc = pd.DataFrame({"x":xs, "v":vs, "w":ws, "y":ys}) # unadjusted estimate is confounded lmc_unadj = smf.ols("y ~ 1 + x", data=dfc).fit() print(lmc_unadj.params) # adjusting for W (or V) recovers the causal effect lmc_adj = smf.ols("y ~ 1 + x + w", data=dfc).fit() print(lmc_adj.params)

Intercept   -0.134730
x            0.487507
dtype: float64
Intercept   -0.083954
x            1.014572
w           -1.068072
dtype: float64

Three different goals when building models¶

The Table 2 fallacy¶

Case study: smoking and lung function in teens¶

In [37]:

smokefev = pd.read_csv("../datasets/smokefev.csv")
print(smokefev.tail(3))

smokefev = pd.read_csv("../datasets/smokefev.csv") print(smokefev.tail(3))

     age    fev  height sex smoke
651   18  2.853    60.0   F    NS
652   16  2.795    63.0   F    SM
653   15  3.211    66.5   F    NS

In [38]:

print(smokefev.describe().round(3))

print(smokefev.describe().round(3))

           age      fev   height
count  654.000  654.000  654.000
mean     9.931    2.637   61.144
std      2.954    0.867    5.704
min      3.000    0.791   46.000
25%      8.000    1.981   57.000
50%     10.000    2.548   61.500
75%     12.000    3.118   65.500
max     19.000    5.793   74.000

In [39]:

smokefev.groupby("smoke")["fev"].mean()

smokefev.groupby("smoke")["fev"].mean()

Out[39]:

smoke
NS    2.566143
SM    3.276862
Name: fev, dtype: float64

In [40]:

meanSM = smokefev[smokefev["smoke"]=="SM"]["fev"].mean()
meanNS = smokefev[smokefev["smoke"]=="NS"]["fev"].mean()
meanSM - meanNS

meanSM = smokefev[smokefev["smoke"]=="SM"]["fev"].mean() meanNS = smokefev[smokefev["smoke"]=="NS"]["fev"].mean() meanSM - meanNS

Out[40]:

0.7107189238605196

In [41]:

sns.boxplot(x="sex", y="fev", hue="smoke", data=smokefev);

sns.boxplot(x="sex", y="fev", hue="smoke", data=smokefev);

In [42]:

# FIGURES ONLY
with plt.rc_context({"figure.figsize":(4,3)}):
    sns.boxplot(x="sex", y="fev", hue="smoke", gap=0.1, data=smokefev);
    filename = os.path.join(DESTDIR, "smokefev_boxplot_fev_by_sex_and_smoke.pdf")
    savefigure(plt.gcf(), filename)

# FIGURES ONLY with plt.rc_context({"figure.figsize":(4,3)}): sns.boxplot(x="sex", y="fev", hue="smoke", gap=0.1, data=smokefev); filename = os.path.join(DESTDIR, "smokefev_boxplot_fev_by_sex_and_smoke.pdf") savefigure(plt.gcf(), filename)

Saved figure to figures/lm/modelselection/smokefev_boxplot_fev_by_sex_and_smoke.pdf
Saved figure to figures/lm/modelselection/smokefev_boxplot_fev_by_sex_and_smoke.png

In [43]:

sns.scatterplot(data=smokefev, x="age", y="fev",
                style="smoke", hue="smoke",
                markers=["X","o"], alpha=0.5);

sns.scatterplot(data=smokefev, x="age", y="fev", style="smoke", hue="smoke", markers=["X","o"], alpha=0.5);

In [44]:

# FIGURES ONLY
from scipy.stats import norm

np.random.seed(41)
smokefevj = smokefev.copy()
smokefevj["age"] = smokefev["age"] + 0.1*norm(0,1).rvs(len(smokefev["age"]))


with plt.rc_context({"figure.figsize":(5,3.5)}):
    ax = sns.scatterplot(x="age", y="fev", style="smoke", hue="smoke",
                         markers=["X","o"], alpha=0.5, data=smokefevj);
    ax.set_xticks(range(3,20))
    filename = os.path.join(DESTDIR, "smokefev_scatterplot_fev_vs_age_by_smoke.pdf")
    savefigure(plt.gcf(), filename)

# FIGURES ONLY from scipy.stats import norm np.random.seed(41) smokefevj = smokefev.copy() smokefevj["age"] = smokefev["age"] + 0.1*norm(0,1).rvs(len(smokefev["age"])) with plt.rc_context({"figure.figsize":(5,3.5)}): ax = sns.scatterplot(x="age", y="fev", style="smoke", hue="smoke", markers=["X","o"], alpha=0.5, data=smokefevj); ax.set_xticks(range(3,20)) filename = os.path.join(DESTDIR, "smokefev_scatterplot_fev_vs_age_by_smoke.pdf") savefigure(plt.gcf(), filename)

Saved figure to figures/lm/modelselection/smokefev_scatterplot_fev_vs_age_by_smoke.pdf
Saved figure to figures/lm/modelselection/smokefev_scatterplot_fev_vs_age_by_smoke.png

Fit the unadjusted model¶

In [45]:

formula_unadj = "fev ~ 1 + C(smoke)"
lmfev_unadj = smf.ols(formula_unadj, data=smokefev).fit()
lmfev_unadj.params

formula_unadj = "fev ~ 1 + C(smoke)" lmfev_unadj = smf.ols(formula_unadj, data=smokefev).fit() lmfev_unadj.params

Out[45]:

Intercept         2.566143
C(smoke)[T.SM]    0.710719
dtype: float64

The parameter estimate $\widehat{\beta}_{\texttt{smoke}}$ we obtain from the unadjusted model echoes the simple difference in means we calculated earlier. Any negative effect of smoke on fev is drowned by the confounding variable age, which is positively associated with both smoke and fev.

Draw a causal graphs¶

Fit the adjusted model¶

In [46]:

formula_adj = "fev ~ 1 + C(smoke) + C(sex) + age"
lmfev_adj = smf.ols(formula_adj, data=smokefev).fit()
lmfev_adj.params

formula_adj = "fev ~ 1 + C(smoke) + C(sex) + age" lmfev_adj = smf.ols(formula_adj, data=smokefev).fit() lmfev_adj.params

Out[46]:

Intercept         0.237771
C(smoke)[T.SM]   -0.153974
C(sex)[T.M]       0.315273
age               0.226794
dtype: float64

The interpretation of $\widehat{\beta}_{\texttt{smoke}} = -0.153974$ is that, according to the adjusted model, smoking decreases your FEV by $0.153974$ litres on average.

Practical significance¶

To better understand the real-world effect of smoking, let's think about two 15 year old females: one who smokes and the other who doesn't.

For the 15 year old nonsmoking female, the expected mean FEV is:

In [47]:

nonsmoker15F = {"age":15, "sex":"F", "smoke":"NS"}
fevNS = lmfev_adj.predict(nonsmoker15F)[0]
fevNS

nonsmoker15F = {"age":15, "sex":"F", "smoke":"NS"} fevNS = lmfev_adj.predict(nonsmoker15F)[0] fevNS

Out[47]:

3.6396839416862936

For a 15 year old, smoking female, the expected mean FEV is:

In [48]:

smoker15F = {"age":15, "sex":"F", "smoke":"SM"}
fevSM = lmfev_adj.predict(smoker15F)[0]
fevSM

smoker15F = {"age":15, "sex":"F", "smoke":"SM"} fevSM = lmfev_adj.predict(smoker15F)[0] fevSM

Out[48]:

3.4857098266910524

The relative reduction in FEV is:

In [49]:

(fevNS - fevSM) / fevNS

(fevNS - fevSM) / fevNS

Out[49]:

0.04230425428750381

A $4.2\%$ reduction in FEV is practically significant, and definitely worth avoiding, especially at this early age.

Discussion¶

Metrics-based variable selection¶

In [50]:

# load the doctors data set
doctors = pd.read_csv("../datasets/doctors.csv")

# load the doctors data set doctors = pd.read_csv("../datasets/doctors.csv")

Fit the short model

In [51]:

formula2 = "score ~ 1 + alc + weed + exrc"
lm2 = smf.ols(formula2, data=doctors).fit()
# lm2.params

formula2 = "score ~ 1 + alc + weed + exrc" lm2 = smf.ols(formula2, data=doctors).fit() # lm2.params

Fit long model with useful loc variable.

In [52]:

formula3 = "score ~ 1 + alc + weed + exrc + C(loc)"
lm3 = smf.ols(formula3, data=doctors).fit()
# lm3.params

formula3 = "score ~ 1 + alc + weed + exrc + C(loc)" lm3 = smf.ols(formula3, data=doctors).fit() # lm3.params

Fit long model with useless variable permit.

In [53]:

formula2p = "score ~ 1 + alc + weed + exrc + permit"
lm2p = smf.ols(formula2p, data=doctors).fit()
# lm2p.params

formula2p = "score ~ 1 + alc + weed + exrc + permit" lm2p = smf.ols(formula2p, data=doctors).fit() # lm2p.params

Comparing metrics¶

In [54]:

lm2.rsquared_adj, lm3.rsquared_adj, lm2p.rsquared_adj

lm2.rsquared_adj, lm3.rsquared_adj, lm2p.rsquared_adj

Out[54]:

(0.8390497506713147, 0.8506062566189324, 0.8407115273797525)

In [55]:

lm2.aic, lm3.aic, lm2p.aic

lm2.aic, lm3.aic, lm2p.aic

Out[55]:

(1103.2518084235273, 1092.5985552344712, 1102.6030626936558)

The value lm2p.aic = 1102.60 is smaller than lm2.aic, but not not that different.

In [56]:

lm2.bic, lm3.bic, lm2p.bic

lm2.bic, lm3.bic, lm2p.bic

Out[56]:

(1115.4512324525256, 1107.8478352707189, 1117.8523427299035)

F-test for the submodel¶

cf. https://www.statsmodels.org/dev/generated/statsmodels.regression.linear_model.RegressionResults.compare_f_test.html

In [57]:

F, p, _ = lm3.compare_f_test(lm2)
F, p

F, p, _ = lm3.compare_f_test(lm2) F, p

Out[57]:

(12.758115596295589, 0.00047598123084919175)

The $p$-value is smaller than $0.05$, so we conclude that adding the variable loc improves the model.

In [58]:

F, p, _ = lm2p.compare_f_test(lm2)
F, p

F, p, _ = lm2p.compare_f_test(lm2) F, p

Out[58]:

(2.5857397307383354, 0.10991892492565322)

The $p$-value is greater than $0.05$, so we conclude that adding the variable permit doesn't improve the model.

Stepwise regression¶

Uses and limitations of causal graphs¶

Further reading on causal inference¶

Exercises¶

In [ ]:

Links¶

In [ ]:

In [ ]:

In [ ]:

In [ ]:

In [ ]:

In [ ]:

In [ ]:

CUT MATERIAL¶

Bonus examples¶

Bonus example 1¶

Example 2 from Why We Should Teach Causal Inference: Examples in Linear Regression With Simulated Data

In [59]:

np.random.seed(1897)
n = 1000
iqs = norm(100,15).rvs(n)
ltimes = 200 - iqs + norm(0,1).rvs(n)
tscores = 0.5*iqs + 0.1*ltimes + norm(0,1).rvs(n)

bdf2 = pd.DataFrame({"iq":iqs,
                     "ltime": ltimes,
                     "tscore": tscores})

np.random.seed(1897) n = 1000 iqs = norm(100,15).rvs(n) ltimes = 200 - iqs + norm(0,1).rvs(n) tscores = 0.5*iqs + 0.1*ltimes + norm(0,1).rvs(n) bdf2 = pd.DataFrame({"iq":iqs, "ltime": ltimes, "tscore": tscores})

In [60]:

lm2a = smf.ols("tscore ~ 1 + ltime", data=bdf2).fit()
lm2a.params

lm2a = smf.ols("tscore ~ 1 + ltime", data=bdf2).fit() lm2a.params

Out[60]:

Intercept    99.602100
ltime        -0.395873
dtype: float64

In [61]:

lm2b = smf.ols("tscore ~ 1 + ltime + iq", data=bdf2).fit()
lm2b.params

lm2b = smf.ols("tscore ~ 1 + ltime + iq", data=bdf2).fit() lm2b.params

Out[61]:

Intercept    3.580677
ltime        0.081681
iq           0.482373
dtype: float64

Bonus example 2¶

Example 1 from Why We Should Teach Causal Inference: Examples in Linear Regression With Simulated Data

In [62]:

np.random.seed(1896)
n = 1000
learns = norm(0,1).rvs(n)
knows = 5*learns + norm(0,1).rvs(n)
undstds = 3*knows + norm(0,1).rvs(n)

bdf1 = pd.DataFrame({"learn":learns,
                     "know": knows,
                     "undstd": undstds})

np.random.seed(1896) n = 1000 learns = norm(0,1).rvs(n) knows = 5*learns + norm(0,1).rvs(n) undstds = 3*knows + norm(0,1).rvs(n) bdf1 = pd.DataFrame({"learn":learns, "know": knows, "undstd": undstds})

In [63]:

blm1a = smf.ols("undstd ~ 1 + learn", data=bdf1).fit()
blm1a.params

blm1a = smf.ols("undstd ~ 1 + learn", data=bdf1).fit() blm1a.params

Out[63]:

Intercept    -0.045587
learn        14.890022
dtype: float64

In [64]:

blm1b = smf.ols("undstd ~ 1 + learn + know", data=bdf1).fit()
blm1b.params

blm1b = smf.ols("undstd ~ 1 + learn + know", data=bdf1).fit() blm1b.params

Out[64]:

Intercept   -0.036520
learn        0.130609
know         2.975806
dtype: float64

Bonus example 3¶

Example 3 from Why We Should Teach Causal Inference: Examples in Linear Regression With Simulated Data

In [65]:

np.random.seed(42)
n = 1000

ntwrks = norm(0,1).rvs(n)
comps = norm(0,1).rvs(n)
boths = ((ntwrks > 1) | (comps > 1))
lucks = bernoulli(0.05).rvs(n)
proms = (1 - lucks)*boths + lucks*(1 - boths)

bdf3 = pd.DataFrame({"ntwrk": ntwrks,
                     "comp": comps,
                     "prom": proms})

np.random.seed(42) n = 1000 ntwrks = norm(0,1).rvs(n) comps = norm(0,1).rvs(n) boths = ((ntwrks > 1) | (comps > 1)) lucks = bernoulli(0.05).rvs(n) proms = (1 - lucks)*boths + lucks*(1 - boths) bdf3 = pd.DataFrame({"ntwrk": ntwrks, "comp": comps, "prom": proms})

Without adjusting for the collider prom, there is almost no effect of the network ability on competence.

In [66]:

blm3a = smf.ols("comp ~ 1 + ntwrk", data=bdf3).fit()
blm3a.params

blm3a = smf.ols("comp ~ 1 + ntwrk", data=bdf3).fit() blm3a.params

Out[66]:

Intercept    0.071632
ntwrk       -0.041152
dtype: float64

But with adjustment for prom, there seems to be a negative effect.

In [67]:

blm3b = smf.ols("comp ~ 1 + ntwrk + prom", data=bdf3).fit()
blm3b.params

blm3b = smf.ols("comp ~ 1 + ntwrk + prom", data=bdf3).fit() blm3b.params

Out[67]:

Intercept   -0.290081
ntwrk       -0.239975
prom         1.087964
dtype: float64

The false negative effect can also appear from sampling bias, e.g. if we restrict our analysis only to people who were promoted.

In [68]:

df3proms = bdf3[bdf3["prom"]==1]
blm3c = smf.ols("comp ~ ntwrk", data=df3proms).fit()
blm3c.params

df3proms = bdf3[bdf3["prom"]==1] blm3c = smf.ols("comp ~ ntwrk", data=df3proms).fit() blm3c.params

Out[68]:

Intercept    0.898530
ntwrk       -0.426244
dtype: float64

Bonus example 4: benefits of random assignment¶

Example 4 from Why We Should Teach Causal Inference: Examples in Linear Regression With Simulated Data

In [69]:

np.random.seed(1896)
n = 1000

iqs = norm(100,15).rvs(n)
groups = bernoulli(p=0.5).rvs(n)
ltimes = 80*groups + 120*(1-groups)
tscores = 0.5*iqs + 0.1*ltimes + norm(0,1).rvs(n)

bdf4 = pd.DataFrame({"iq":iqs,
                     "ltime": ltimes,
                     "tscore": tscores})

np.random.seed(1896) n = 1000 iqs = norm(100,15).rvs(n) groups = bernoulli(p=0.5).rvs(n) ltimes = 80*groups + 120*(1-groups) tscores = 0.5*iqs + 0.1*ltimes + norm(0,1).rvs(n) bdf4 = pd.DataFrame({"iq":iqs, "ltime": ltimes, "tscore": tscores})

In [70]:

# non-randomized            # random assignment
bdf2.corr()["iq"]["ltime"],  bdf4.corr()["iq"]["ltime"]

# non-randomized # random assignment bdf2.corr()["iq"]["ltime"], bdf4.corr()["iq"]["ltime"]

Out[70]:

(-0.9979264589333363, -0.020129851374243907)

In [71]:

bdf4.groupby("ltime")["iq"].mean()

bdf4.groupby("ltime")["iq"].mean()

Out[71]:

ltime
80     99.980423
120    99.358152
Name: iq, dtype: float64

In [72]:

blm4a = smf.ols("tscore ~ 1 + ltime", data=bdf4).fit()
blm4a.params

blm4a = smf.ols("tscore ~ 1 + ltime", data=bdf4).fit() blm4a.params

Out[72]:

Intercept    50.688293
ltime         0.091233
dtype: float64

In [73]:

blm4b = smf.ols("tscore ~ 1 + ltime + iq", data=bdf4).fit()
blm4b.params

blm4b = smf.ols("tscore ~ 1 + ltime + iq", data=bdf4).fit() blm4b.params

Out[73]:

Intercept   -0.303676
ltime        0.099069
iq           0.503749
dtype: float64

In [74]:

blm4c = smf.ols("tscore ~ 1 + iq", data=bdf4).fit()
blm4c.params

blm4c = smf.ols("tscore ~ 1 + iq", data=bdf4).fit() blm4c.params

Out[74]:

Intercept    9.896117
iq           0.501168
dtype: float64

Side-quest (causal influence of mem)¶

Suppose we're interested in ... mem wasn't randomized, but because we de

In [75]:

blm8c = smf.ols("score ~ 1 + mem", data=df2r).fit()
blm8c.params

blm8c = smf.ols("score ~ 1 + mem", data=df2r).fit() blm8c.params

Out[75]:

Intercept    17.382804
mem          10.430159
dtype: float64
